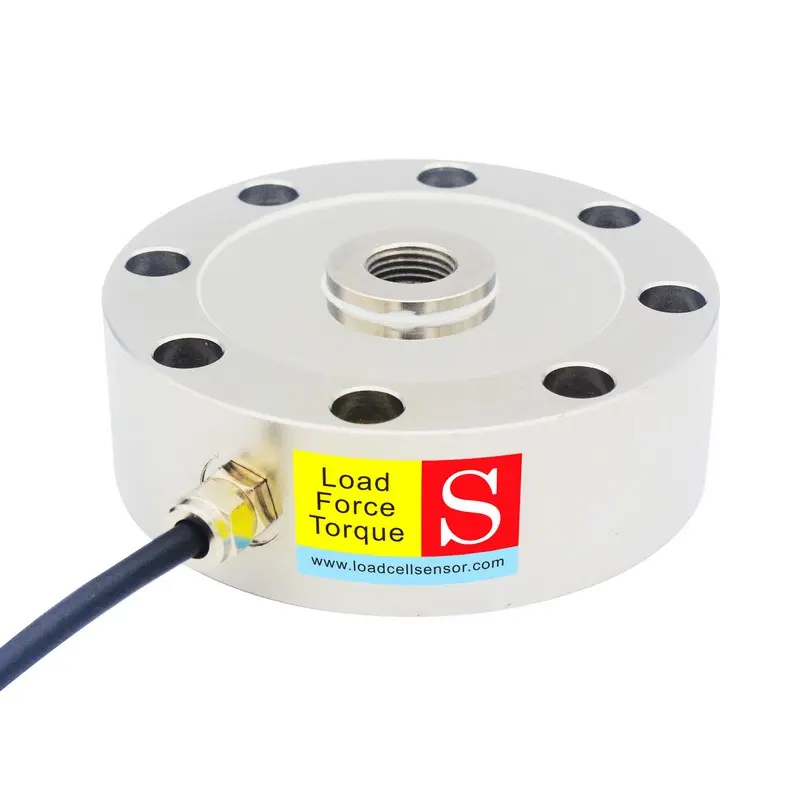

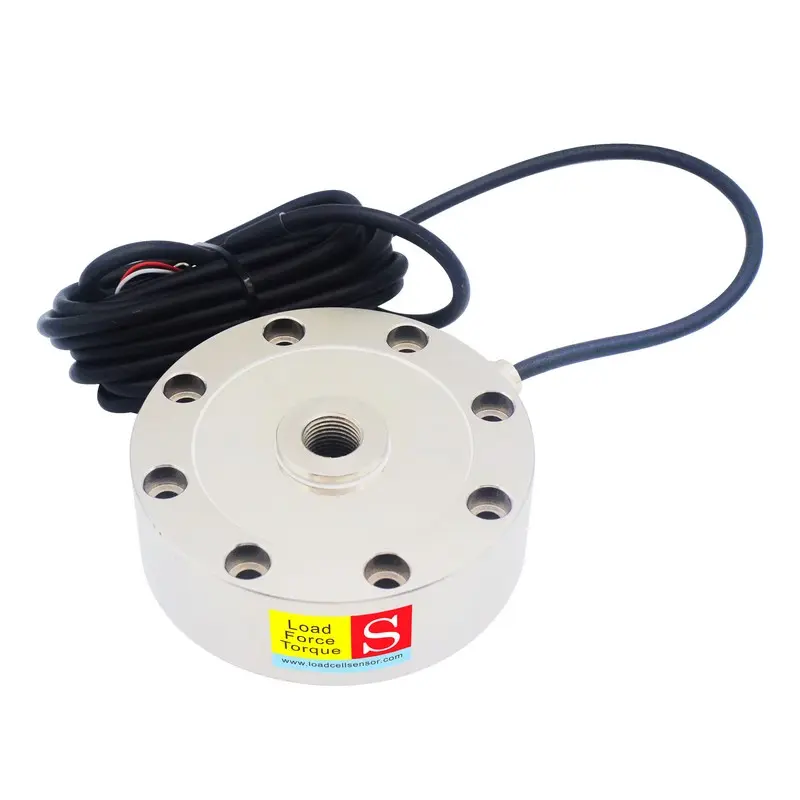

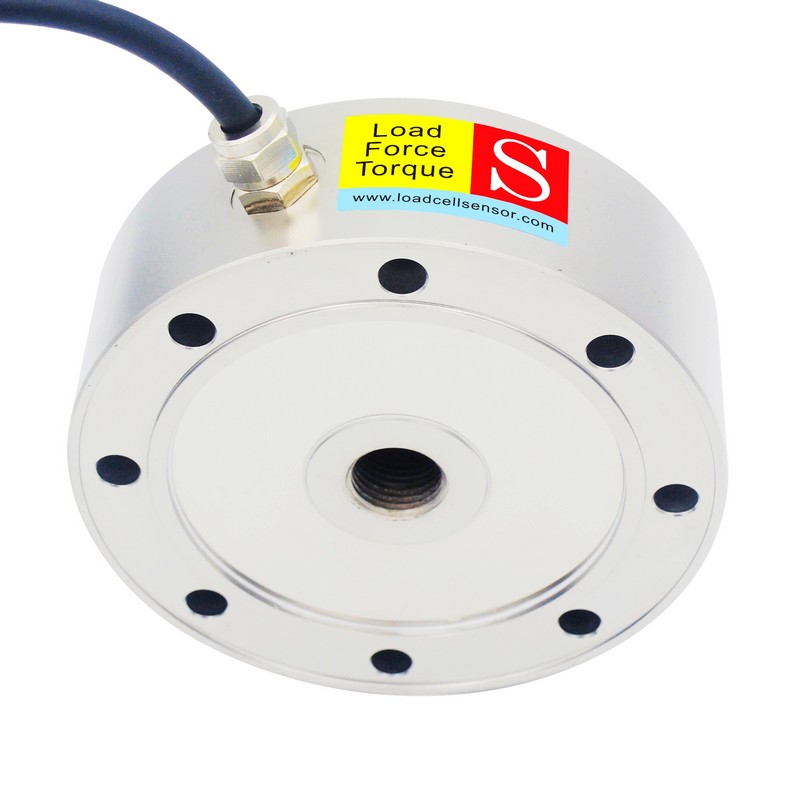

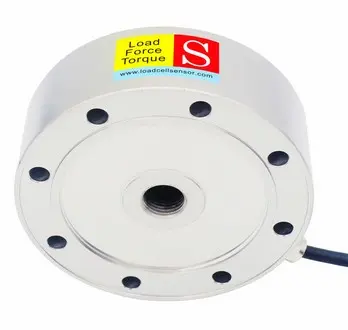

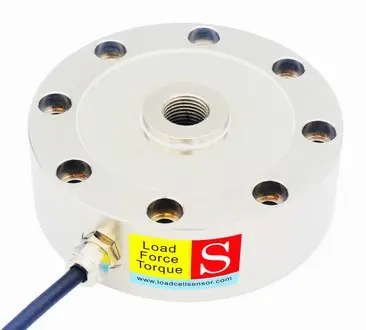

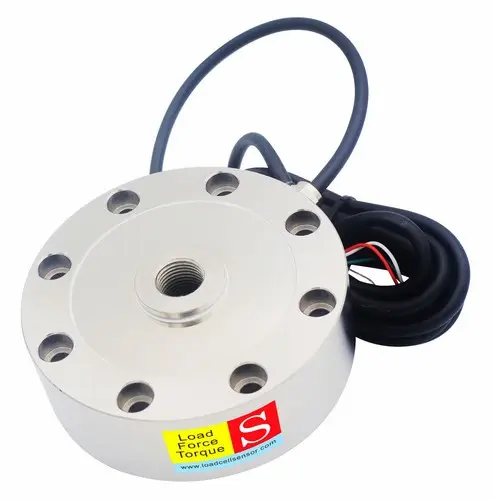

0-50kN Compression Force Sensor With 0-5V 0-10V 4-20mA Output

The LCPA series is a high-performance load cell with built-in amplifier, specifically developed as a reliable compression force sensor for demanding industrial and testing environments. Built from premium-grade stainless steel, it offers excellent mechanical strength along with strong resistance to corrosion, ensuring stable and consistent operation over long service periods. With rated capacities spanning from 5kN up to 50kN—including 5kN, 10kN, 20kN, 30kN, and 50kN models—this series supports a wide range of force measurement requirements across automation, manufacturing, and quality control applications.

Equipped with an integrated signal conditioning circuit, this load cell with built-in amplifier operates on a standard 12–24 V DC power supply and delivers industry-compatible outputs such as 0–5 V, 0–10 V, and 4–20 mA. These standardized signals enable direct integration with PLC systems, industrial controllers, and data acquisition equipment, reducing the need for external signal processing and improving system efficiency. As a compact pancake-style compression force sensor, the LCPA features a central M16×1.5 threaded mounting interface, ensuring precise axial force transfer when used with load buttons or threaded rods. This design helps maintain measurement accuracy while minimizing alignment errors during installation.

Thanks to its low-profile structure and integrated electronics, the LCPA simplifies system setup and is well suited for use in both automated production lines and laboratory testing environments. It provides stable output and high repeatability, making it ideal for real-time force monitoring and closed-loop control applications. Common uses include hydraulic press force feedback, injection molding clamping force monitoring, press-fit force verification in assembly processes, and calibration of pneumatic actuators.

In addition to standard configurations, customized solutions are available to meet specific project requirements, including tailored output signals and mechanical designs. This flexibility, combined with its durability and precision, makes the LCPA series a dependable choice for engineers seeking accurate and efficient compression force measurement solutions in industrial applications.
