Planar Beam Load Cell

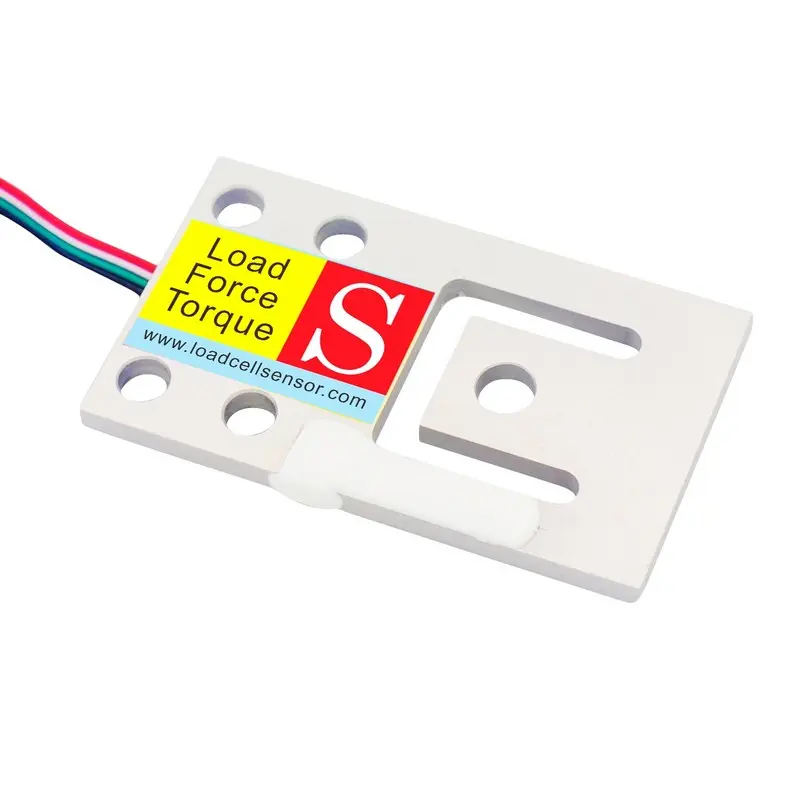

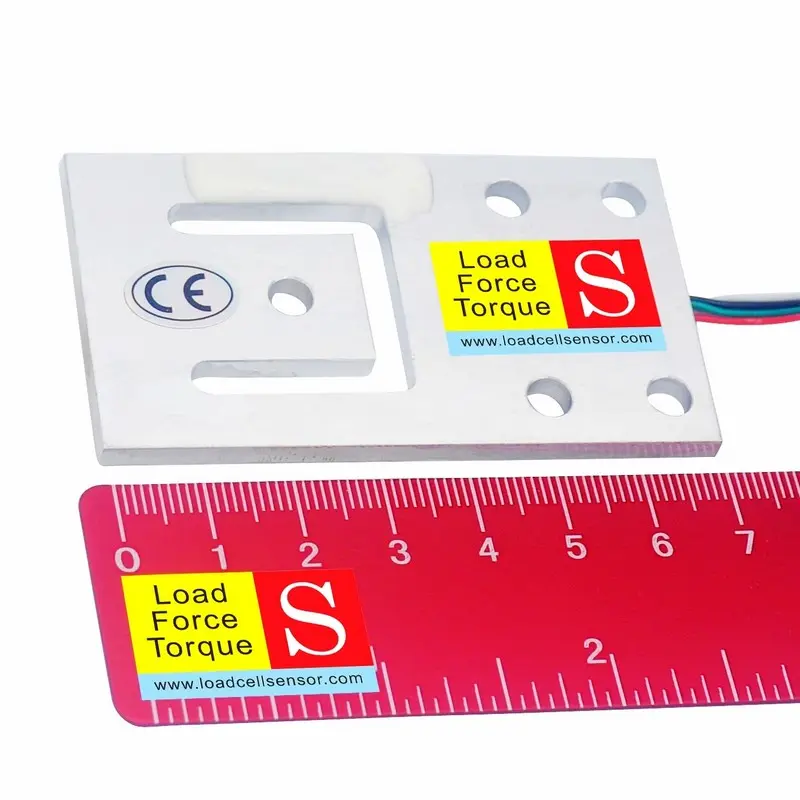

The Planar Beam Load Cell LCA02 is a highly adaptable, precision-engineered load cell designed to deliver consistent accuracy, compactness, and optimized power efficiency. This load cell is constructed from durable aluminum and incorporates advanced strain gauge technology, offering exceptional reliability for various industrial and automation applications. Available in four rated capacities—30kg, 75kg, 150kg, and 300kg—the LCA02 is versatile enough to suit a range of load requirements while maintaining a remarkably low non-linearity error of less than 0.05% of full scale, ensuring high precision in demanding applications.

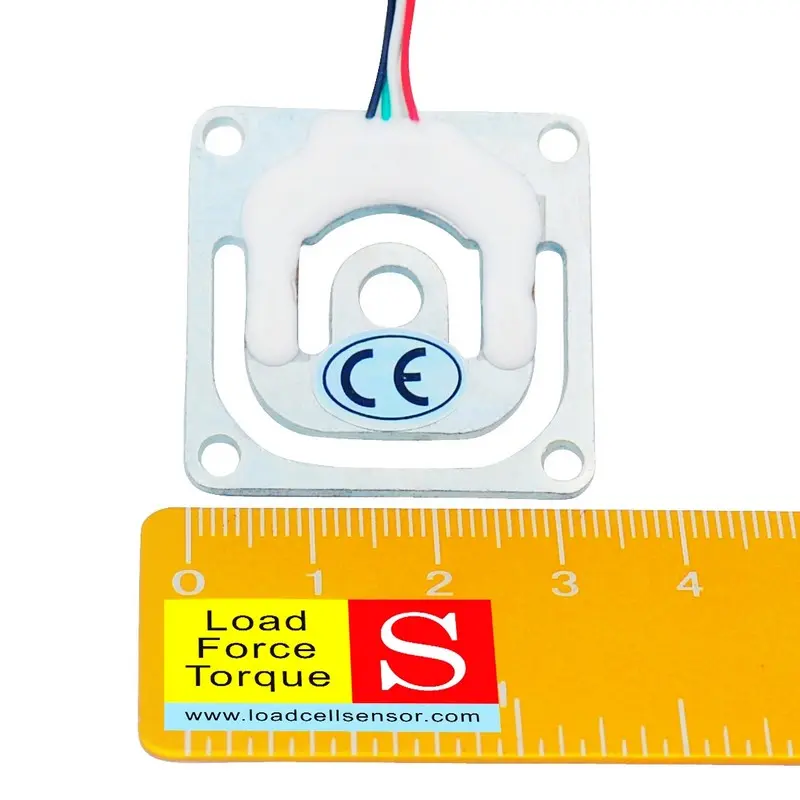

Crafted from alloy steel, the LCA01 Low Profile Load Cell is engineered with a planar beam structure, the four through holes around the transducer can be used to mount the loadcell to a solid surface, while the central 5.1mm thru hole can be used to mount accessories to load the sensor in both traction and compression direction. This innovative design not only enhances the load cell’s strength but also contributes to its low profile, making it an ideal choice for installations where height restrictions are a concern.
