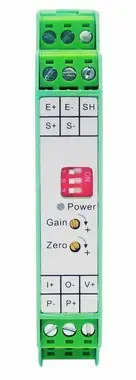

DIN Rail Mount Load Cell Signal Conditioner -10-10V 4-20mA

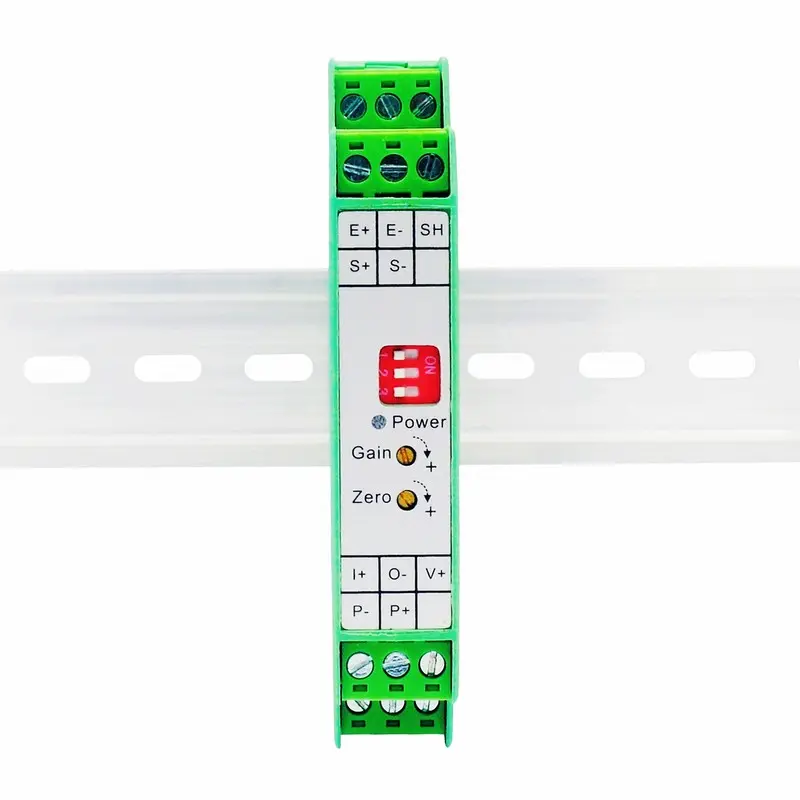

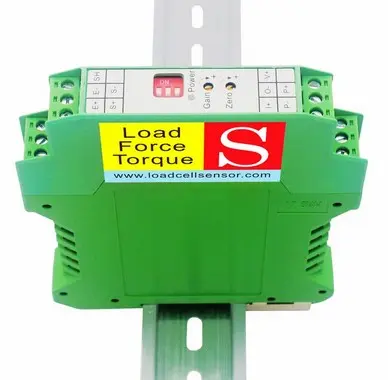

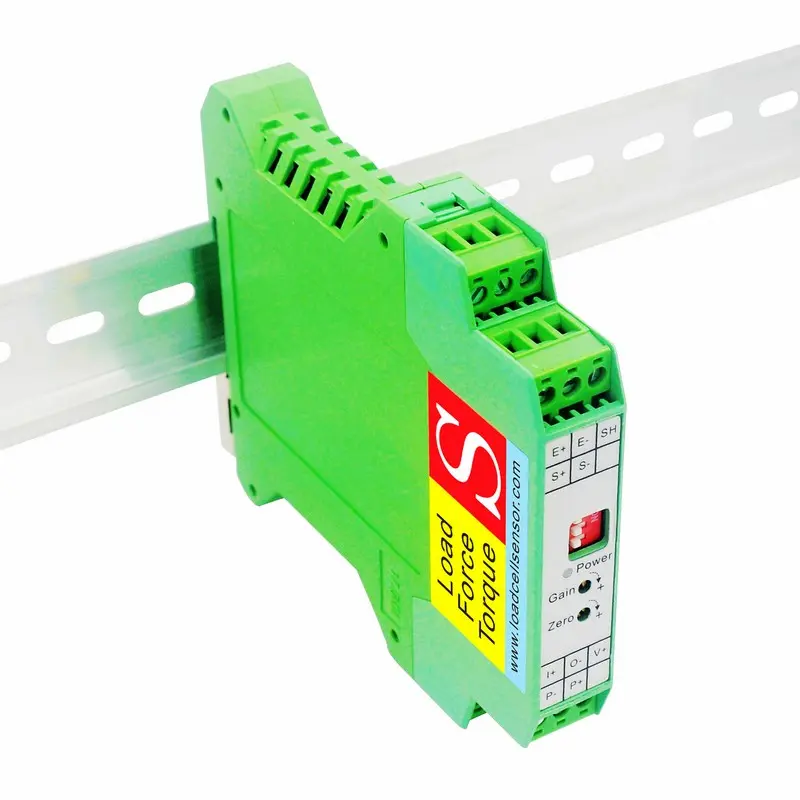

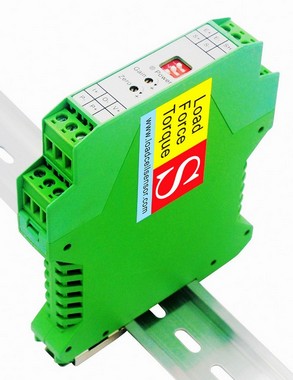

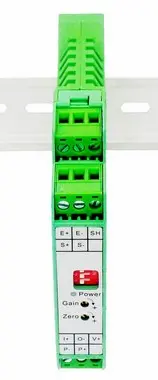

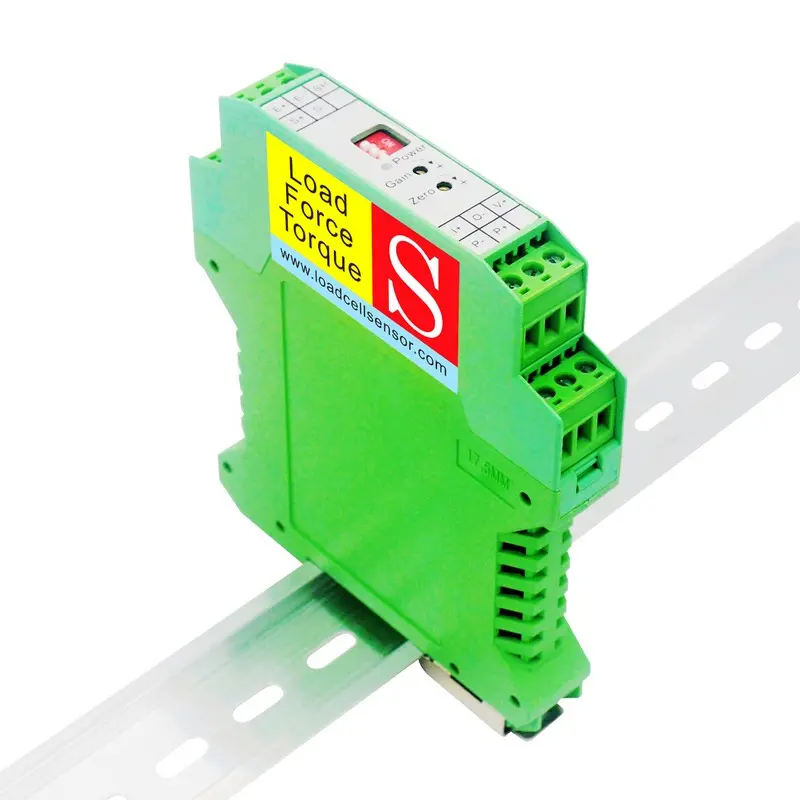

The AAR DIN rail load cell amplifier is a compact and reliable signal conditioning device designed to convert the low-level millivolt signals from load cells and force sensors into standard industrial outputs such as ±10V or 4-20mA. This capability makes it easier for users to integrate load cells with industrial systems like PLCs, data acquisition equipment, and control panels. Built specifically for industrial environments, the AAR signal converter is housed in a durable casing that allows for easy installation, fitting seamlessly into control cabinets and automation setups. With a wide input voltage range of 12V to 26V DC and power consumption under 1.2W, it offers energy-efficient performance while maintaining signal integrity.

The AAR signal transmitter also features selectable bandwidth settings of 100Hz and 3kHz, giving users flexibility to choose between stable low-frequency signal processing or capturing rapid force changes, depending on their application needs. The unit is rated with a 1500V isolation voltage, offering strong protection against electrical noise and enhancing operational safety in demanding environments. Additionally, the output can be easily calibrated using accessible "Zero" and "Gain" potentiometers, allowing precise adjustment without requiring special tools. These features make the AAR signal conditioner a practical choice for various industrial applications requiring accurate force measurement, whether in tension or compression. By combining amplification, signal conversion, and protection in one device, this load cell DIN rail mount signal amplifier ensures reliable performance across a wide range of force monitoring tasks and weight measuring applications.
