Multi-Axis Force Sensor 200kN 100kN 50kN Triaxial Load Cell

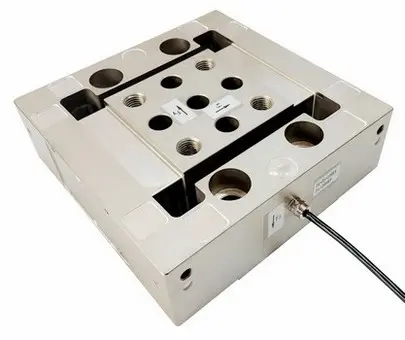

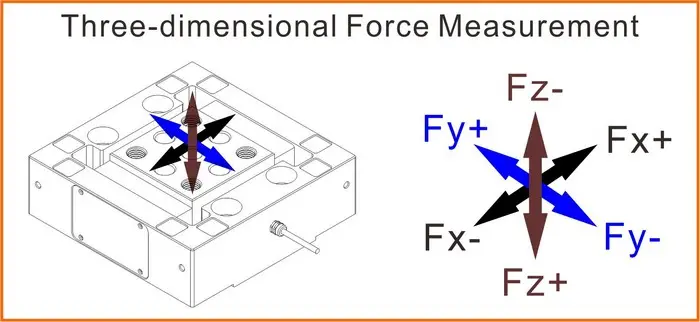

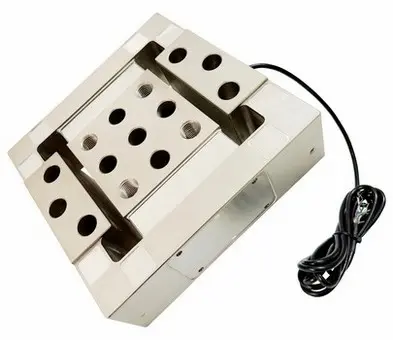

The LCM05 is a meticulously engineered 3-axis force load cell designed to measure forces simultaneously along three mutually perpendicular axes—X, Y, and Z. It accurately captures both tensile and compressive forces in these directions, providing true three-dimensional force data without requiring mathematical decoupling or complex signal processing. Each axis produces an independent mV/V output, ensuring excellent signal separation, high accuracy, and outstanding repeatability. This makes the LCM05 highly suitable for demanding applications in industrial automation, robotics, and scientific research. In many cases, it can be used as a direct replacement for the popular Interface 3A300 model.

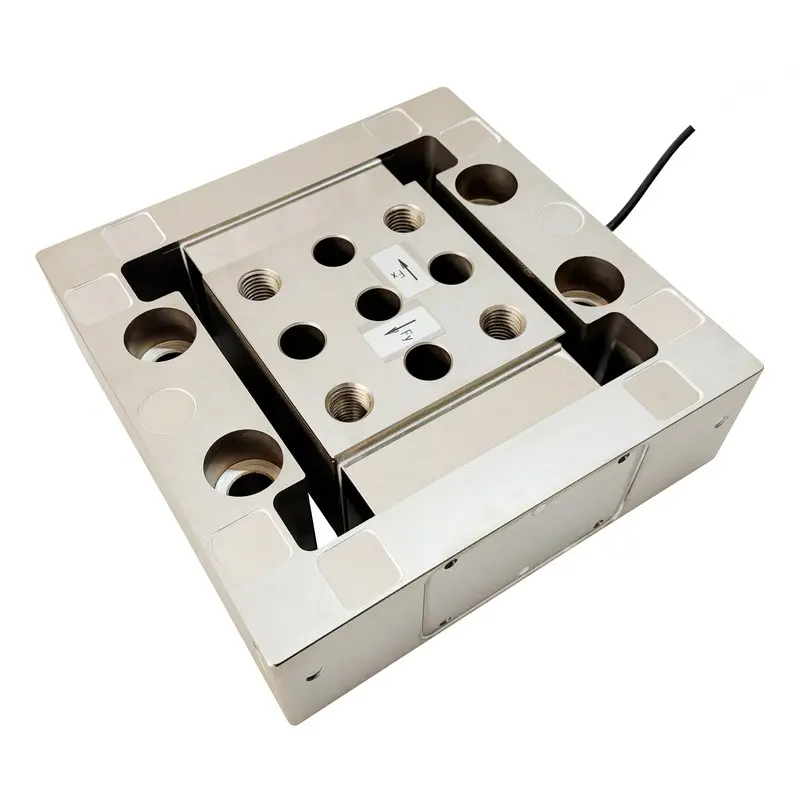

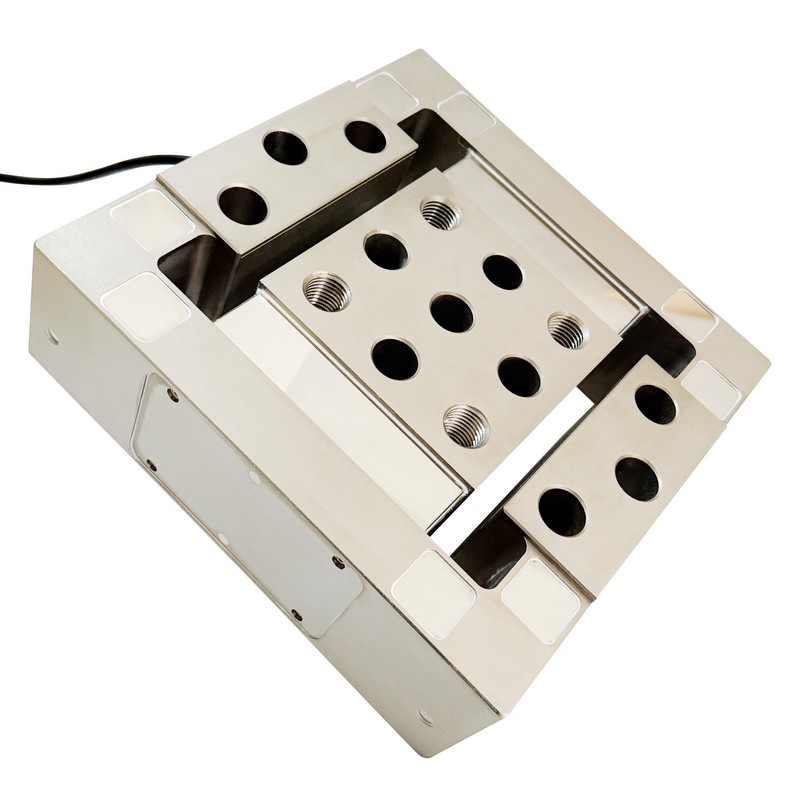

Manufactured from high-strength alloy steel, the LCM05 combines robust durability with a compact, low-profile design. Its slim construction allows it to function efficiently as a multi-axis load cell in installations where space is limited but high load capacity is essential. Available in rated capacities of 50 kN, 100 kN, and 200 kN, this sensor supports a wide range of use cases, from precision lab testing to heavy-duty industrial environments. As a trusted triaxial force sensor, it provides consistent and synchronized force measurements across multiple axes, even under complex and dynamic loading conditions.

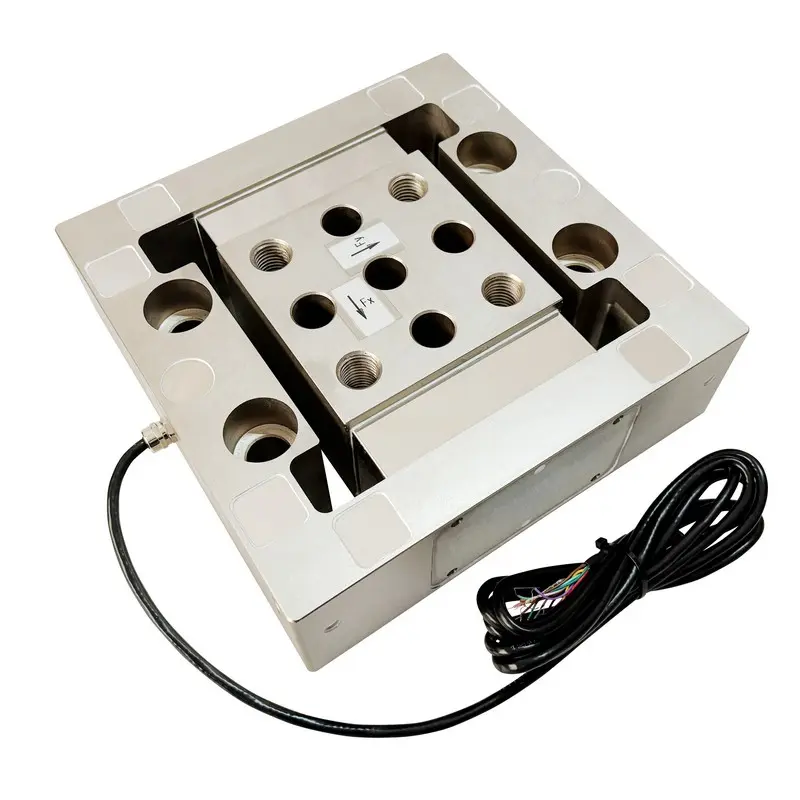

The LCM05 is equipped with a standard 3-meter integrated cable to facilitate easy installation. For enhanced flexibility, a detachable cable option is also available, enabling easier system integration, maintenance, and replacement. This thoughtful design helps users adapt the sensor to various system configurations without hassle, improving overall operational efficiency.

Each unit undergoes thorough in-house calibration and rigorous performance testing before delivery. Comprehensive test reports are provided, documenting both increasing and decreasing load verifications across all three measurement axes. This level of quality control ensures that the sensor performs reliably and repeatably in real-world applications, giving users confidence in their measurement data.

For projects requiring specialized load ranges, customized mounting solutions, or unique sensor dimensions, LCS Tech works closely with customers to develop tailored three-component load cell solutions. Drawing on extensive engineering expertise and proven experience in force measurement, LCS Tech delivers bespoke 3D sensing systems designed to meet exact customer requirements. These customized solutions ensure optimal performance and seamless integration in even the most demanding multi-axis force measurement challenges.
