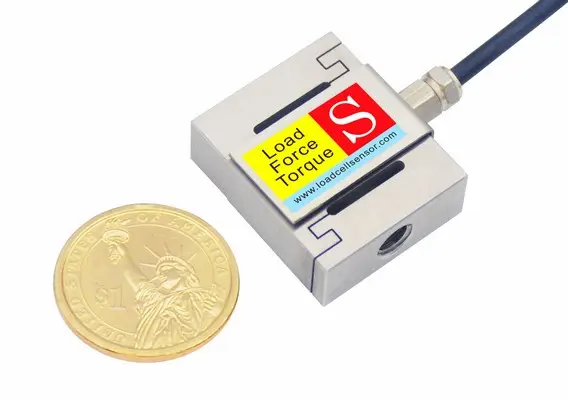

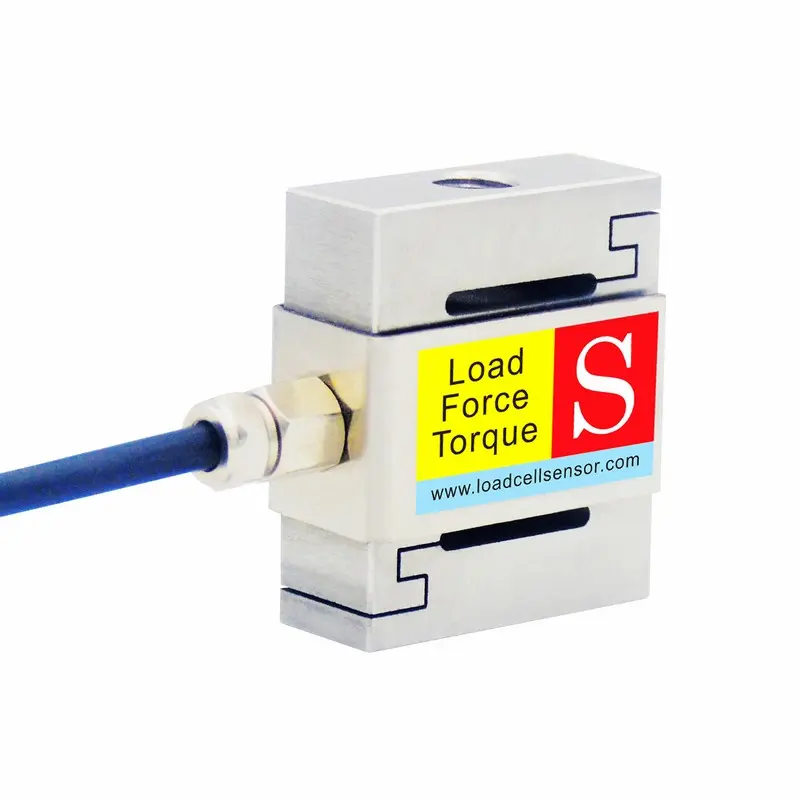

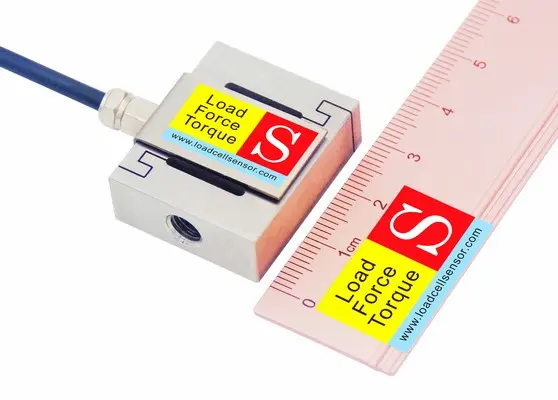

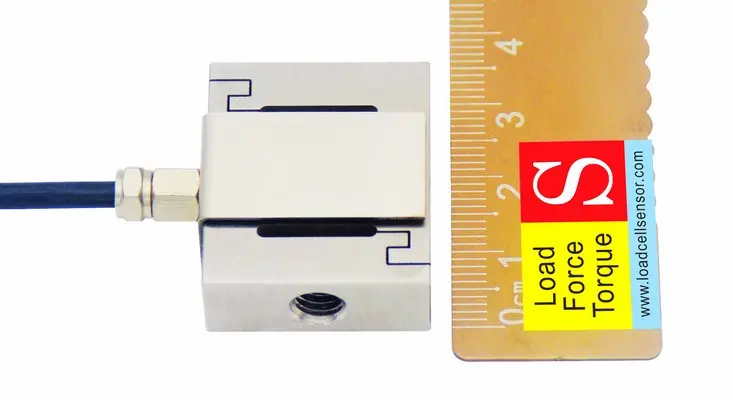

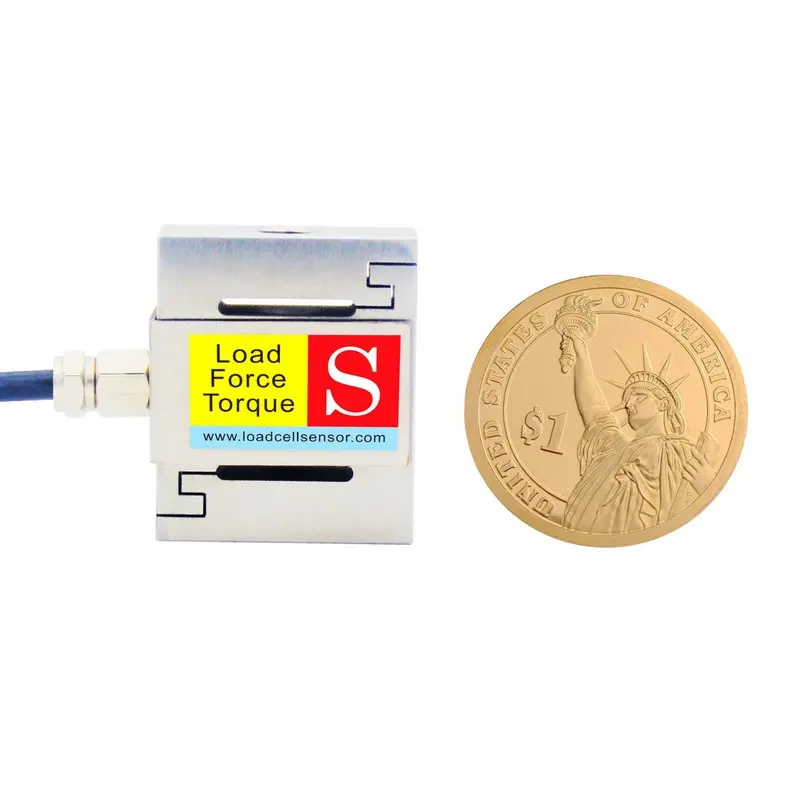

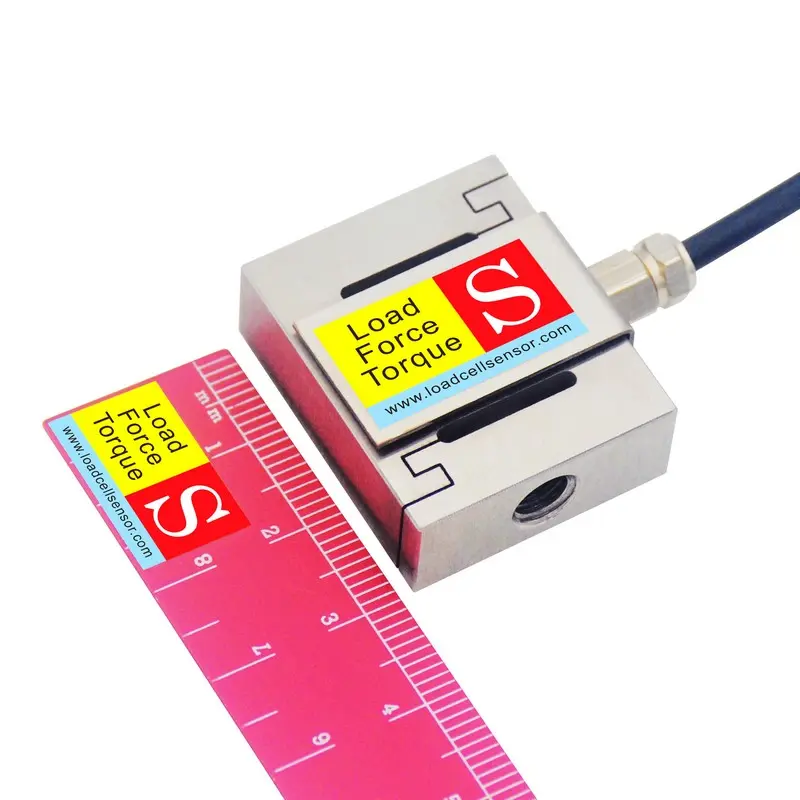

Miniature Force Cell 0-500N S-type Tension Compression Load Cell

The LCSE miniature S type load cell is a compact and high-precision force sensor designed for accurate measurement of both tension and compression forces in applications where space is limited but measurement accuracy is critical. Manufactured from high-grade stainless steel, this miniature S-beam load cell provides excellent mechanical strength, long-term stability, and superior resistance to corrosion, making it suitable for use in harsh industrial environments as well as clean laboratory conditions. Its rugged construction ensures consistent performance even under repeated loading, while the precision strain gauge design delivers reliable output with high repeatability and low hysteresis.

The sensor is specifically developed for low-range force measurement, offering outstanding sensitivity for small load detection without sacrificing durability. Multiple rated capacities are available, including 50N, 100N, 200N, 300N, and 500N, allowing users to select the most appropriate range according to the required measurement accuracy and safety margin. This flexibility makes the LCSE load cell suitable for a wide variety of testing machines, automation equipment, and OEM systems that require precise force feedback. Its compact size allows easy installation in tight spaces, enabling engineers to integrate accurate force measurement into equipment where conventional load cells cannot fit.

As a push-pull type force sensor, the LCSE miniature load cell is equipped with M6 threaded mounting holes on both ends, providing a secure and versatile installation method. The sensor can be mounted using eye bolts, hooks, threaded rods, load buttons, or custom fixtures, allowing it to adapt to different mechanical structures and testing setups. This flexible mounting design makes the load cell easy to install, remove, and replace, reducing maintenance time and improving system efficiency. In addition, customized versions can be provided to meet special dimensional, electrical, or performance requirements, making the product suitable for OEM development and specialized research equipment.

With its combination of compact structure, high accuracy, corrosion resistance, and flexible installation, the LCSE miniature S-type load cell is an ideal choice for engineers, researchers, and equipment manufacturers who require dependable force measurement in demanding applications. The sensor is widely used for monitoring, testing, and controlling force in precision machinery, automated production lines, quality inspection systems, and experimental setups. Its stable performance and customizable design ensure reliable operation across long-term use, helping improve product quality, testing accuracy, and overall system safety.

Typical Applications:

• Spring testing machines
• Button and switch force testing
• Fatigue testing of small components
• Biomechanics force measurement
• Automated packaging force monitoring
• Connector insertion and extraction testing
• Small actuator force verification
• Precision micro-assembly testing
• Wire and cable tension measurement
• Friction and resistance testing systems
