Miniature Threaded In Line Load Cell Rod End Force Cell

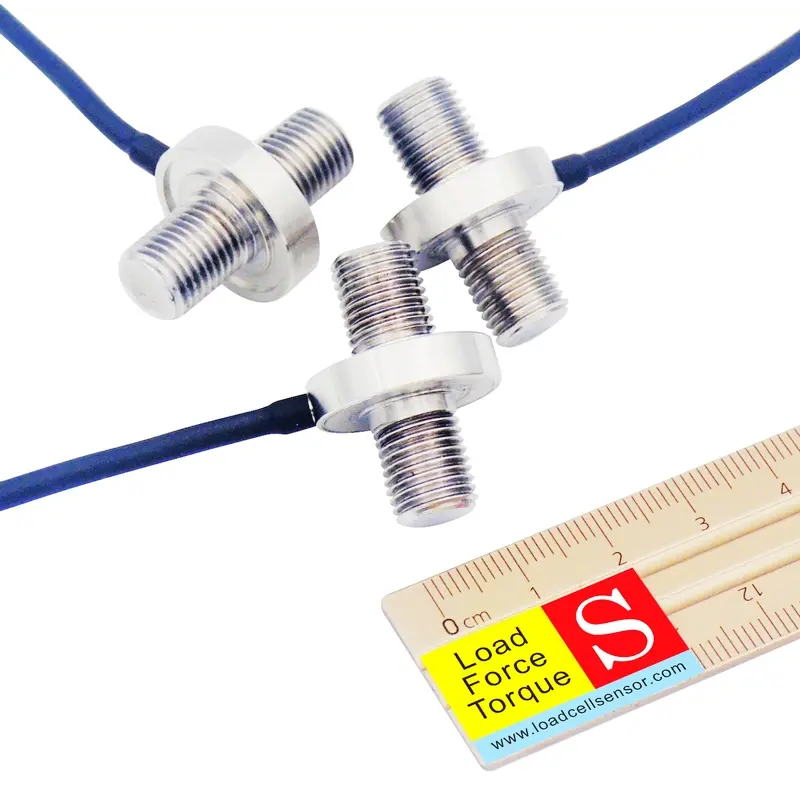

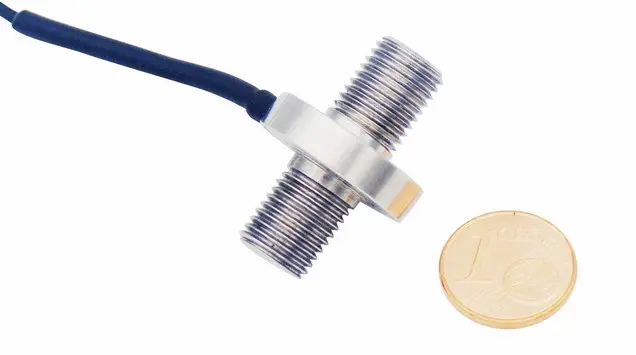

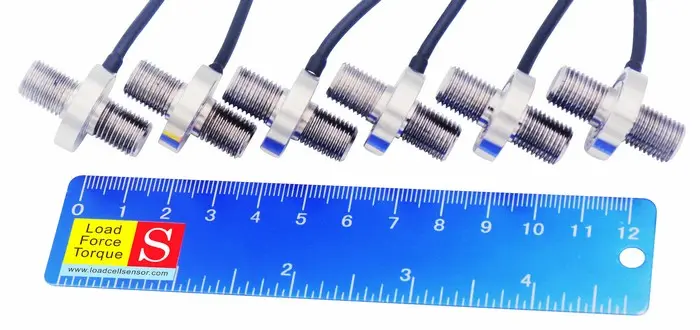

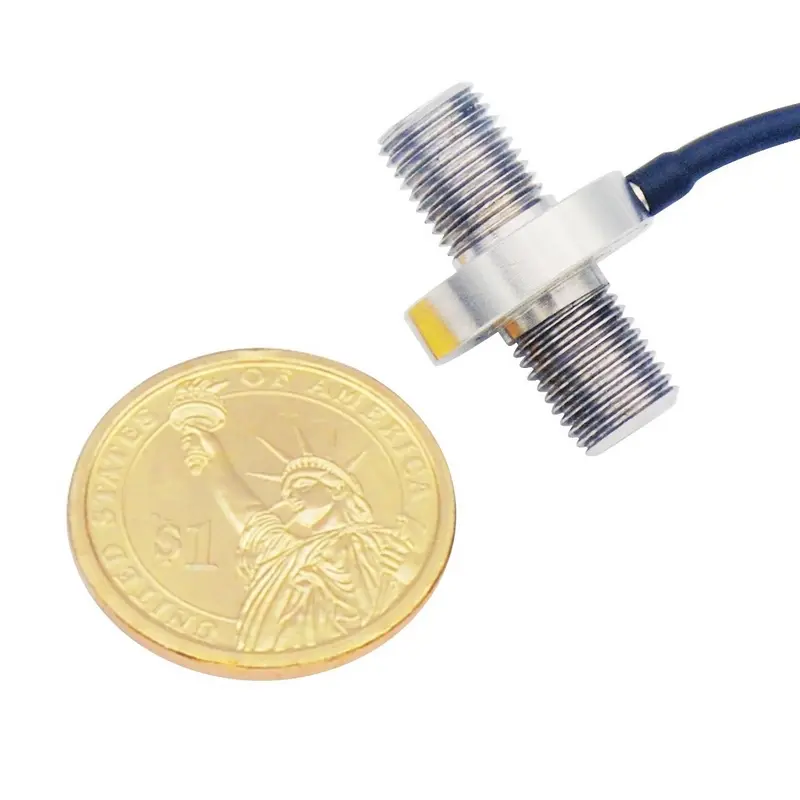

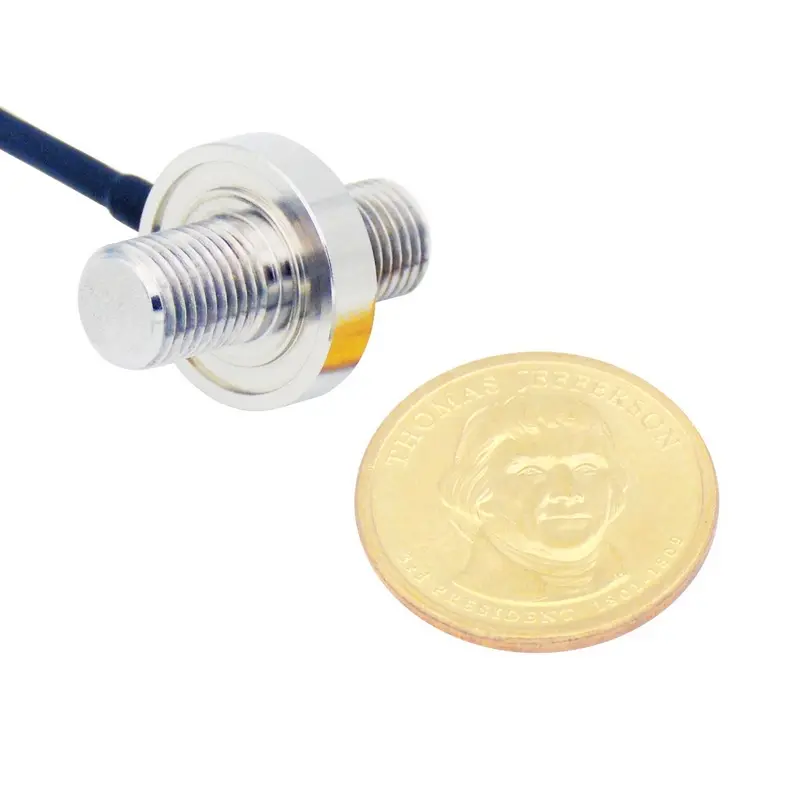

The LCRD is a miniature threaded in line load cell specifically designed for highly accurate tension and compression measurements in compact assemblies. Measuring only 20.3 mm in diameter with an installed height of just 5 mm, this mini force cell provides an ultra-low-profile solution for applications where space is at a premium. Its small size ensures that engineers can integrate precise force measurement capabilities into assemblies without significantly affecting overall dimensions. The sensor's compact form factor makes it an ideal choice for tight spaces while maintaining reliable performance in critical measurement tasks.

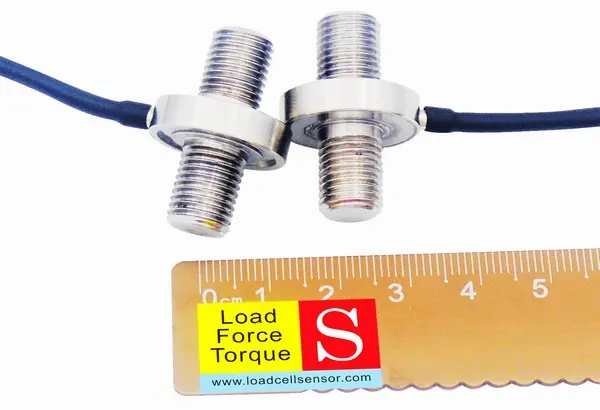

Equipped with 3/8-24 UNF-2A x 0.4 male threads, the LCRD allows for straightforward integration into inline force measurement systems. This threaded design simplifies mounting and ensures the sensor can be securely attached with minimal impact on the assembly's height or diameter. The compact threaded configuration also makes the LCRD a practical lightweight load cell, providing precise force feedback without adding unnecessary bulk to the system. This feature is particularly advantageous in dynamic systems where maintaining a low profile and minimal mass is critical for accurate measurements.

Constructed from durable stainless steel, the LCRD force detection sensor offers robust performance in demanding industrial environments. Its stainless-steel body provides corrosion resistance, mechanical strength, and long-term reliability, making it suitable for both laboratory testing and field applications. Available in 500 lb and 1000 lb rated capacities, the sensor provides flexibility for a range of force measurement needs. Its design also allows it to function effectively as a rod end force sensor, enabling seamless integration into mechanical linkages or actuator systems that require compact, accurate force sensing.

The column-type sensing structure of the LCRD ensures excellent mechanical stiffness and stability, resulting in a high natural frequency and a very low rated deformation of 0.05 mm. These characteristics make the sensor highly effective for both static and dynamic force measurements in tension and compression directions. The high stiffness also minimizes deflection under load, which is crucial for applications requiring precise and repeatable force readings. This makes the LCRD suitable for advanced engineering applications where accuracy and responsiveness are critical.

In addition to its robust performance, the LCRD serves as a cost-effective alternative to the Futek LCM200 load cell, delivering comparable measurement capabilities at a more economical price point. This makes it an excellent choice for inline force measurement applications that require high precision without significantly increasing system costs. Its combination of compact size, threaded mounting, and versatile performance ensures that it can be easily integrated into both new designs and retrofitted systems.

For projects with specific structural, dimensional, or force-range requirements, LCS TECH collaborates closely with customers to provide fully customized solutions. Whether configured as a miniature threaded in line load cell, mini force cell, or rod end force sensor, each LCRD can be tailored to meet precise integration and performance specifications. This ensures that every sensor delivers optimal reliability, accuracy, and functionality, making the LCRD an adaptable and dependable solution for modern force measurement applications across diverse industries.
