DIN Rail Load Cell Indicator Signal Transmitter

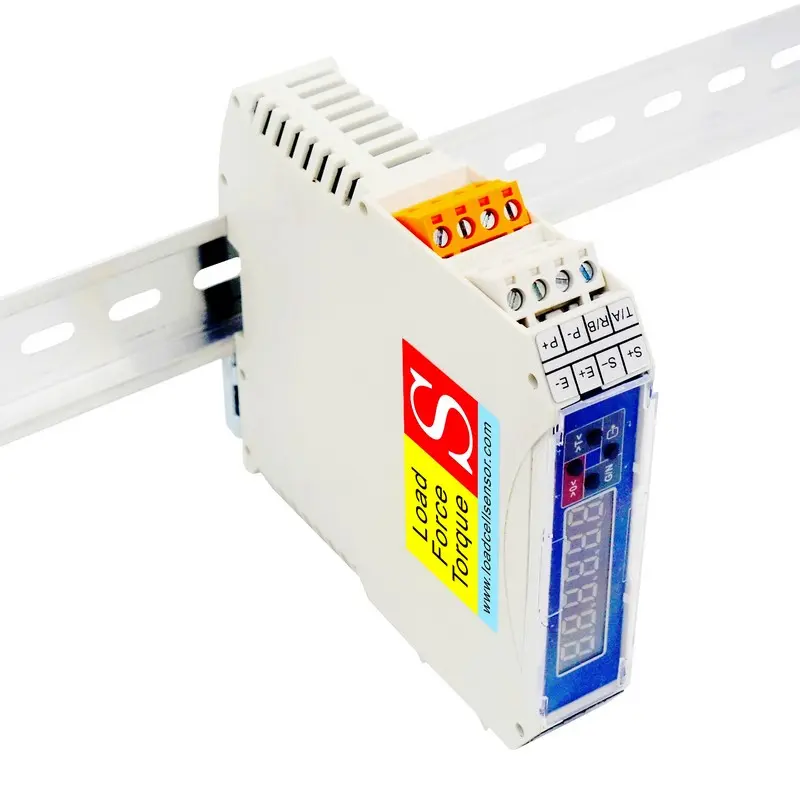

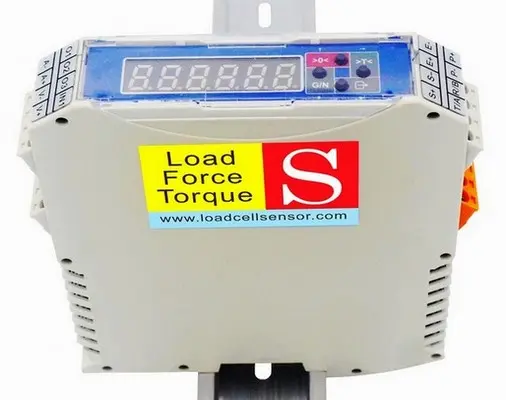

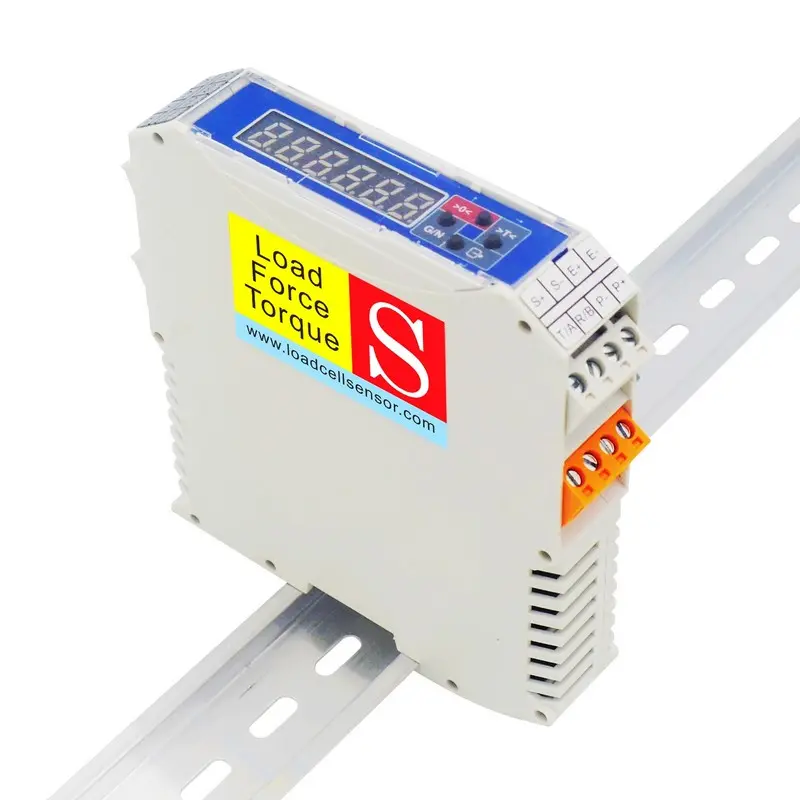

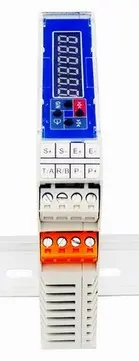

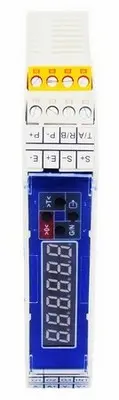

The SDMA DIN rail mount load cell indicator is a highly functional signal conditioning device designed to convert the low-level mV/V output signals from load cells and force transducers into standard industrial signals for easy system integration. Built with industrial applications in mind, this indicator features a durable 35mm DIN rail mount housing, making it ideal for control panels, automation setups, and various factory environments. Its compact design ensures space-saving installation while offering robust performance. The unit operates on a broad input voltage range of 12V to 26V DC, maintaining power efficiency with a consumption of less than 2W.

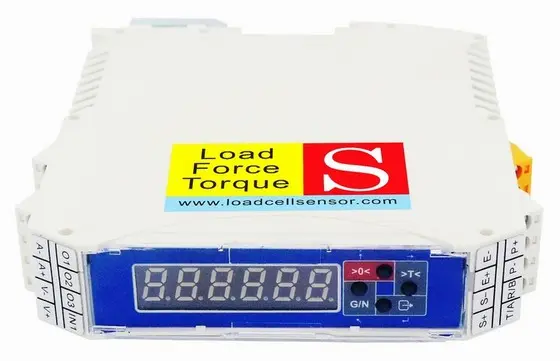

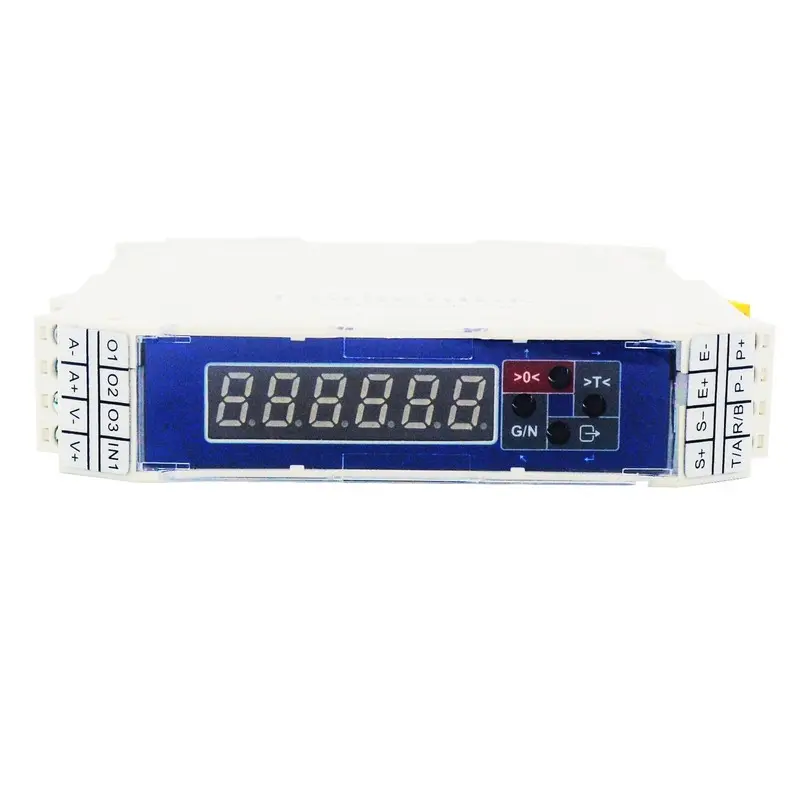

Engineered with a high isolation voltage of 1500V, the SDMA DIN rail load cell transmitter safeguards both the unit itself and connected equipment from electrical disturbances, providing reliable data transmission even under demanding conditions. Equipped with a digital display, it offers clear readings within a wide range of -99999 to +999999, suitable for precision force measurement tasks. Users can adjust the A/D conversion rate between 6Hz and 1600Hz, allowing for optimal balance between response speed and signal stability depending on the application. The indicator supports both ±10V and 4-20mA analog outputs along with RS485 digital communication, enabling flexible connectivity with PLCs, data acquisition systems, and industrial controllers. By integrating signal amplification, digital readout, and communication functions into a single compact device, the SDMA DIN rail mount load cell display unit provides a practical and reliable solution for various tension and compression force measurement applications in modern industrial environments.
