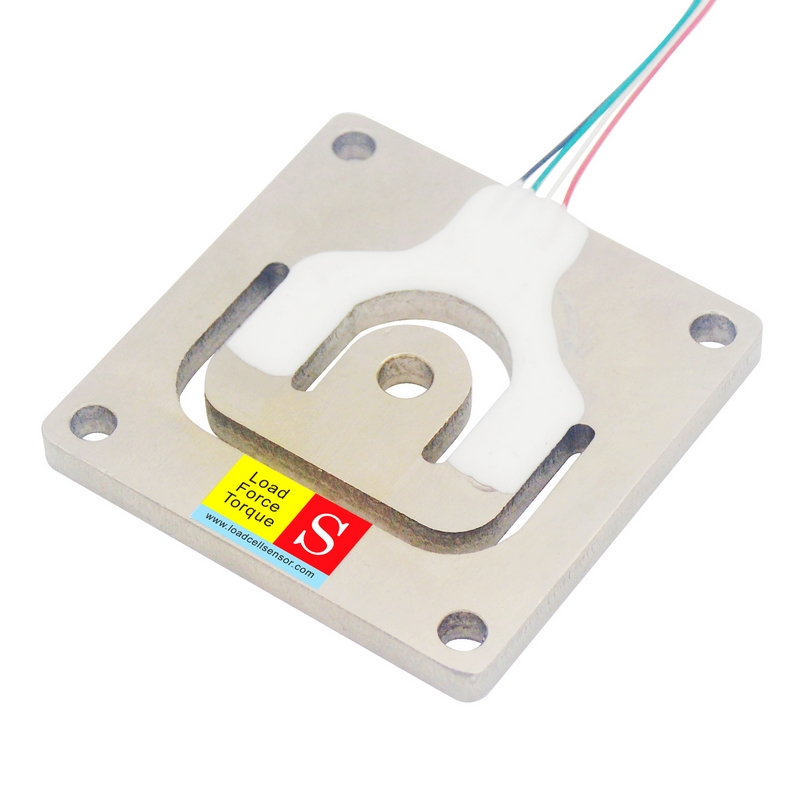

Planar Beam Load Cell 200kg 500kg Low Profile Compression Sensor

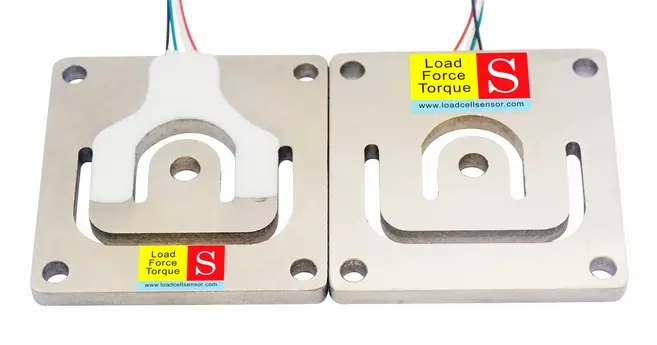

The LCA05 is a highly versatile low profile load cell developed for accurate force monitoring in systems where available mounting space is restricted. Its ultra-thin construction enables seamless integration into equipment that requires reliable force measurement without increasing overall assembly height. Built from durable alloy steel and utilizing precision foil strain gauges, the sensor delivers dependable performance, long-term stability, and excellent repeatability under continuous operation.

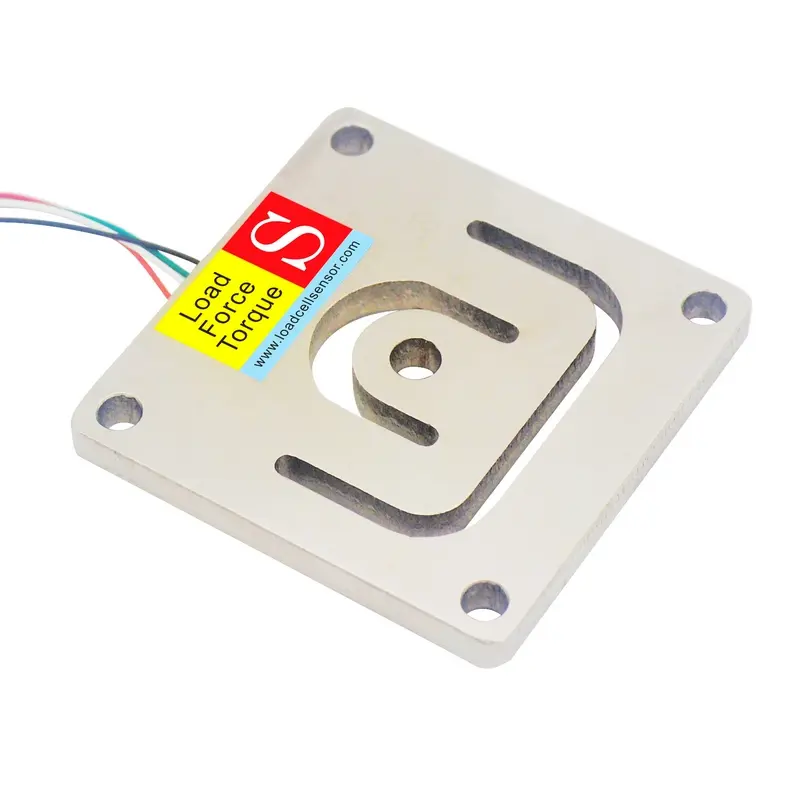

Designed to measure forces in both tension and compression, the LCA05 is available in capacities ranging from 200kg to 500kg, making it suitable for a wide variety of industrial and commercial applications. The sensing element is optimized to provide consistent output across the measurement range, allowing engineers to achieve accurate force data for control, testing, and monitoring purposes.

The sensor incorporates a practical mounting arrangement with multiple fixing points and a central loading interface that simplifies mechanical integration. This design helps ensure efficient load transfer to the sensing structure while minimizing measurement errors caused by improper installation. As a compact load cell, the LCA05 is particularly well suited for OEM equipment, embedded systems, and custom-designed machinery where installation flexibility is essential.

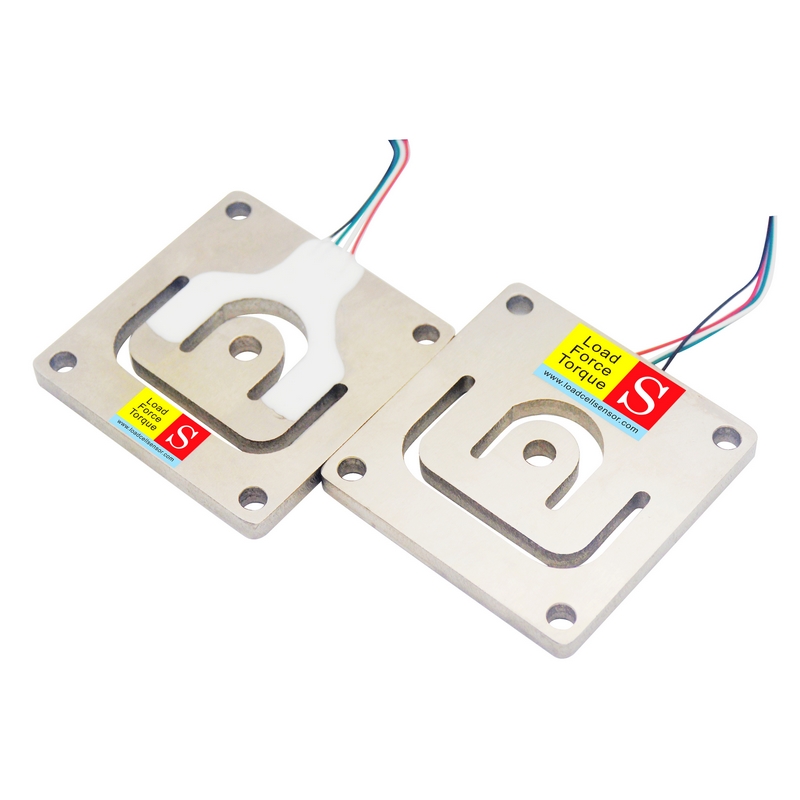

Thanks to its thin geometry and responsive performance, the LCA05 is frequently used as a force plate load cell in simulation platforms, human-machine interface systems, robotics, and automated production equipment. It is also an excellent choice for motion control devices and force feedback sensor applications that require precise force detection to enhance user interaction and system responsiveness.

Engineers seeking a cost-effective and space-saving force transducer will appreciate the combination of durability, accuracy, and ease of installation offered by the LCA05. Whether employed in research equipment, industrial automation, gaming simulators, or specialized testing systems, this sensor provides reliable force measurement in a compact form factor while maintaining the performance required for demanding applications.
