The Flange Rotary Torque Meter RTSB is an advanced torque measurement device designed for high-precision industrial applications. It consists of two key components: a rotor and a stator. The rotor is equipped with strain gauges that detect the torsional force between the front and rear flanges, converting it into a millivolt-level analog signal. This signal is then collected by the stator in a contactless manner and processed to provide a standardized output of 0-5V, 0-10V, or 4-20mA, which is proportional to the applied torque.

The miniature 3-axis load cell LCM11 is designed for precision and versatility, highlighted by its exceptionally compact size. With a footprint of only 32x32mm and a low height of 20mm, the LCM11 is ideal for applications where space is limited yet high-performance force measurement is essential. Constructed from red anodized aluminum, the LCM11 combines lightweight properties with robust strength. Available in rated capacities of 50N, 100N, and 200N, it accommodates a range of force measurement needs.

The RTS03 motor torque sensor features a shaft-to-shaft configuration, allowing easy installation between a power axle and a load shaft using couplings. This setup is particularly beneficial in applications requiring direct power transmission and load monitoring. One of the standout aspects of the RTS03 is its contactless signal transmission. The interaction between the rotating shaft and the stationary outer body occurs through coils without mechanical contact, making this sensor maintenance-free and far more durable than traditional slip ring torque sensors, which often suffer from wear and require regular upkeep.

The multi-axis load cell LCM09 is distinguished by its highly compact design, boasting a small footprint of just 40x40mm and a low height of only 20mm. This streamlined configuration makes the LCM09 ideal for applications where space is a constraint but precise force measurement is required. Available in capacities of 5kg, 10kg, 20kg, 50kg, and 100kg, the LCM09 can be constructed from either aluminum or stainless steel, depending on the force range and specific application needs. This flexibility ensures that the sensor meets various industrial standards and client specifications.

The non-contact rotary torque sensor RTSA is a cutting-edge device equipped with wireless electronics to transmit torque signals during rotation. Designed for precision and durability, the RTSA measures both rotational torque and angle simultaneously, offering output options of 0-5V, 0-10V, or 4-20mA for torque data and pulse output for angular measurements. This dual-channel capability makes the RTSA an essential tool for applications requiring real-time monitoring of both parameters.

The 3-axis Load Cell LCM06 is a high-precision sensor built from durable stainless steel and features an innovative flange-to-flange design that allows for straightforward and secure mounting. This versatile load cell is available in rated capacities ranging from 5kg, 10kg, 20kg, 30kg, up to 50kg, making it suitable for a wide range of force measurement tasks. Designed to measure forces in both tension and compression, the LCM06 offers flexibility for applications requiring accurate monitoring under varied load conditions.

The contactless rotary torque sensor RTS02 is a highly reliable and precise instrument designed for measuring rotating drive torque in an in-line shaft-to-shaft configuration. It can be easily mounted between a power axle and a load shaft using couplings, providing a seamless integration into various mechanical and testing setups. The signal transmission between the rotating shaft and the fixed outer body operates through coils without any mechanical contact, ensuring that the RTS02 torque meter is both durable and maintenance-free. This non-contact technology significantly reduces wear, contributing to a longer lifespan and dependable operation over time.

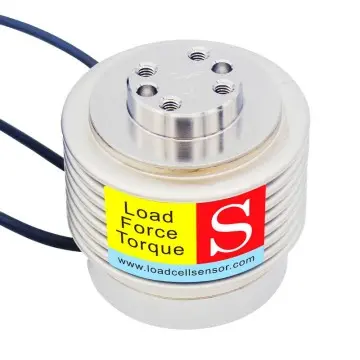

Model: LCM3A

Certification: CE

ODxH: Φ52x52mm

Axes: Fx Fy Fz

Capacity: 5kg 10kg 20kg 50kg

Sensor output: -12mV...+12mV

Amplifier output: -5-5V 0-10V 4-20mA

Material: Stainless steel

Ingress protection: IP67

Structure: Flange-to-flange

The non-contact rotary torque sensor RTS01 is a precision-engineered device designed to accurately measure rotating drive torque in an in-line shaft-to-shaft configuration. This setup is typically achieved using couplings to ensure stable and secure integration into various mechanical systems. The RTS01 features contactless signal transmission between the measuring axis and the stationary receiver, which significantly enhances the sensor's longevity and enables maintenance-free operation. This advanced technology reduces wear and tear, making it ideal for continuous, long-term use.

Model: LCM07

Price: 899usd/pc

Certification: CE

Axes: Fx Fy Fz

Capacity: 50kg 100kg 200kg 300kg 500kg 1000kg

Sensor output: -12mV...+12mV

Amplifier output: -5-5V 0-10V 4-20mA

Material: Stainless steel

Structure: Flange-to-flange

The hollow flange rotary torque transducer RTSH is a state-of-the-art device utilizing non-contact transformer technology for accurate and reliable torque measurement. Unlike traditional slip-ring torque sensors, the RTSH transmits signals between the rotating shaft and the fixed outer body using coils, eliminating mechanical contact. This contactless design eliminates wear and tear, significantly enhancing the sensor's durability and ensuring it remains maintenance-free. This makes the RTSH an ideal solution for long-term applications requiring precision and reliability in challenging environments.

Model: LCM3D

Certification: CE

Measuring direction: Fx Fy Fz

Sensor output: -20mV...+20mV

Amplifier output: -5-5V 0-10V 4-20mA RS485 RS232

MOQ: 1pc

Price: Start from 1190usd/pc

Lead time: 5-7 weeks (Made to order)

MTA600-A: 600kg-600kg-2500kg

MTA600-B: 1000kg-1000kg-4000kg

MTA600-C: 1100kg-1100kg-2200kg

MTA600-D: 2000kg-2000kg-6000kg

MTA600-E: 3000kg-3000kg-10000kg

MOQ: 1pc

Production lead time: 5-7 weeks (Made to order)
