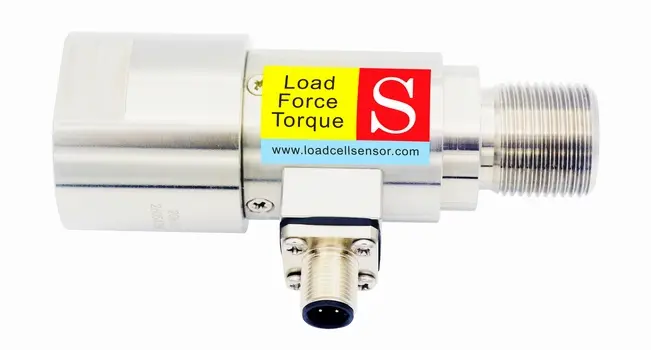

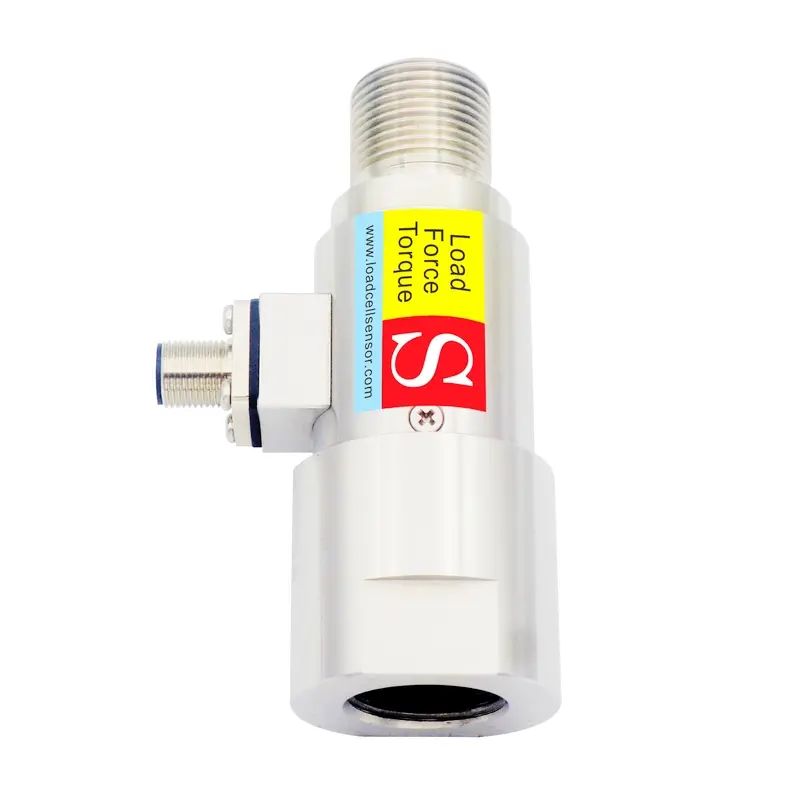

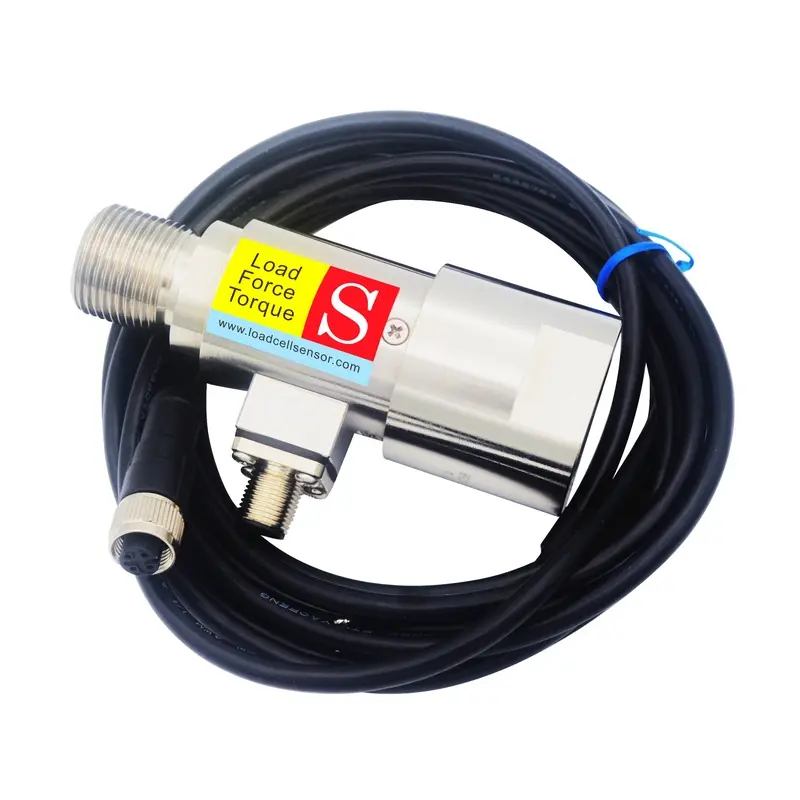

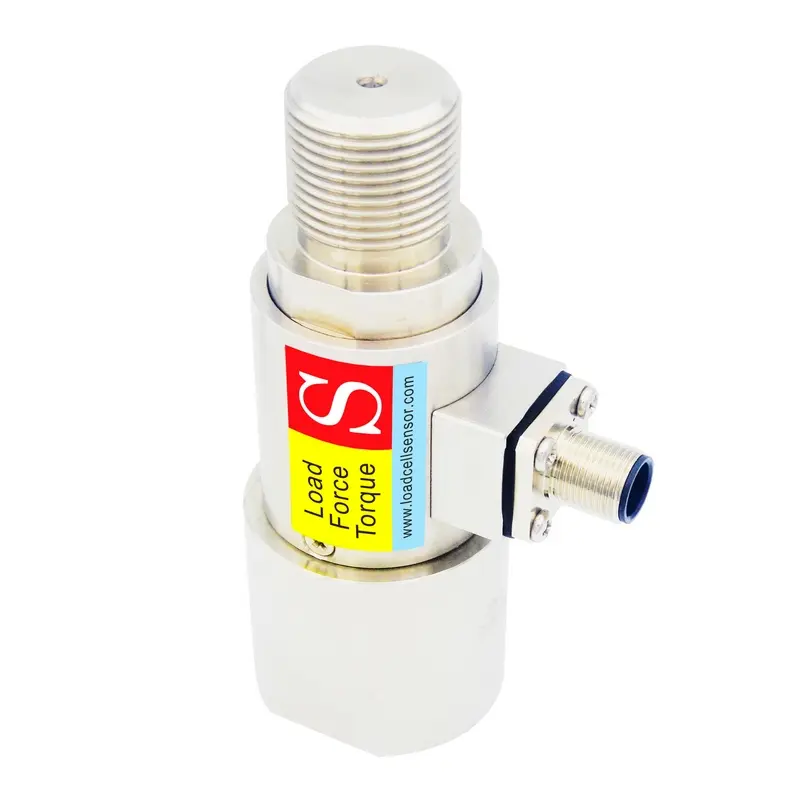

0–20 klb Rod End Load Cell LCB450 for Actuator Force Feedback

The LCB450 rod end load cell is a precision sensing solution engineered for accurate measurement of axial forces in compact mechanical assemblies. Designed as a rod end load cell, it integrates seamlessly into actuator-driven systems where direct alignment with the load path is essential. Its construction features a 1-14 UNS female thread on one end and a matching male thread on the other, enabling it to function as a threaded in-line load cell that can be installed directly between actuator rods, hydraulic cylinders, or mechanical transmission linkages without requiring structural modification.

Built from high-strength stainless steel, this device offers excellent durability and long service life even in harsh industrial environments involving vibration, shock loading, or continuous operation. As an actuator load cell, it is optimized for both static and dynamic force monitoring, delivering stable output under varying operating conditions. Available in 5 klb, 10 klb, and 20 klb capacity ranges, it supports bidirectional measurement of tension and compression, making it suitable for systems requiring accurate force evaluation in multiple load directions.

The LCB450 actuator load cell also functions effectively as a thrust force sensor, providing precise measurement of pushing and pulling forces in linear motion systems. Its inline architecture ensures minimal interference with mechanical movement while maintaining high signal integrity. In addition, it serves as a reliable force feedback sensor, enabling closed-loop control in automated systems where real-time force data is essential for performance optimization and safety assurance.

Typical applications include industrial automation equipment where actuator force control is critical, hydraulic press force monitoring, robotic motion systems requiring feedback for precise positioning, material testing machines for tensile and compressive evaluation, overload protection systems in mechanical assemblies, valve actuation force verification in process industries, and structural load monitoring in mechanical linkages or test rigs.

Each unit is supplied with an in-house calibration report to ensure traceable measurement accuracy and consistent performance. Customization options are available to accommodate specific installation constraints, electrical output requirements, or integration into specialized machinery. The LCB450 combines robust mechanical design with high measurement fidelity, making it a dependable solution for advanced force sensing applications in modern industrial environments.
