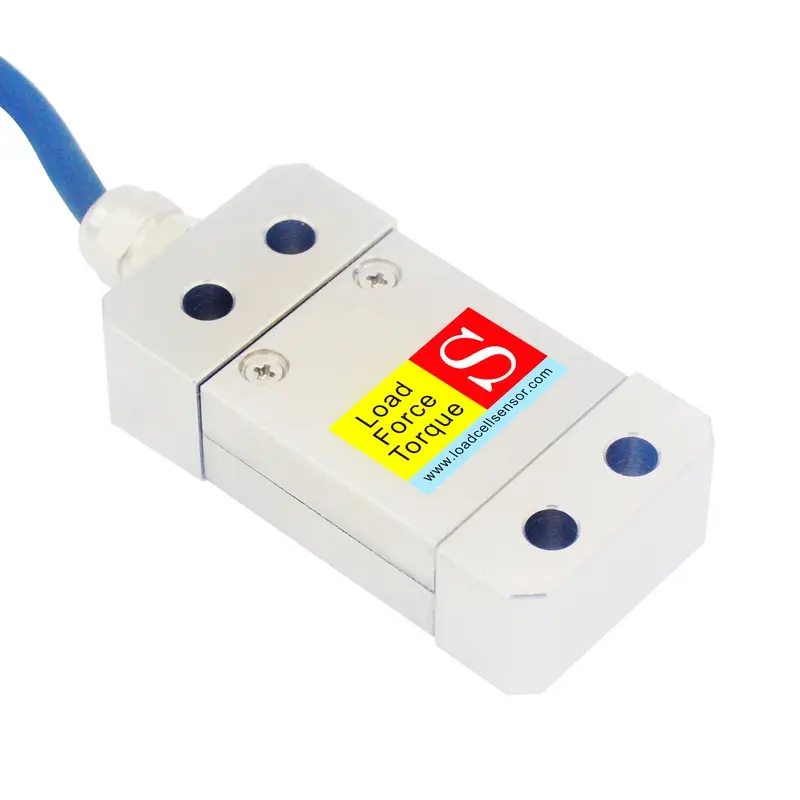

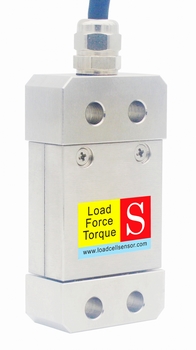

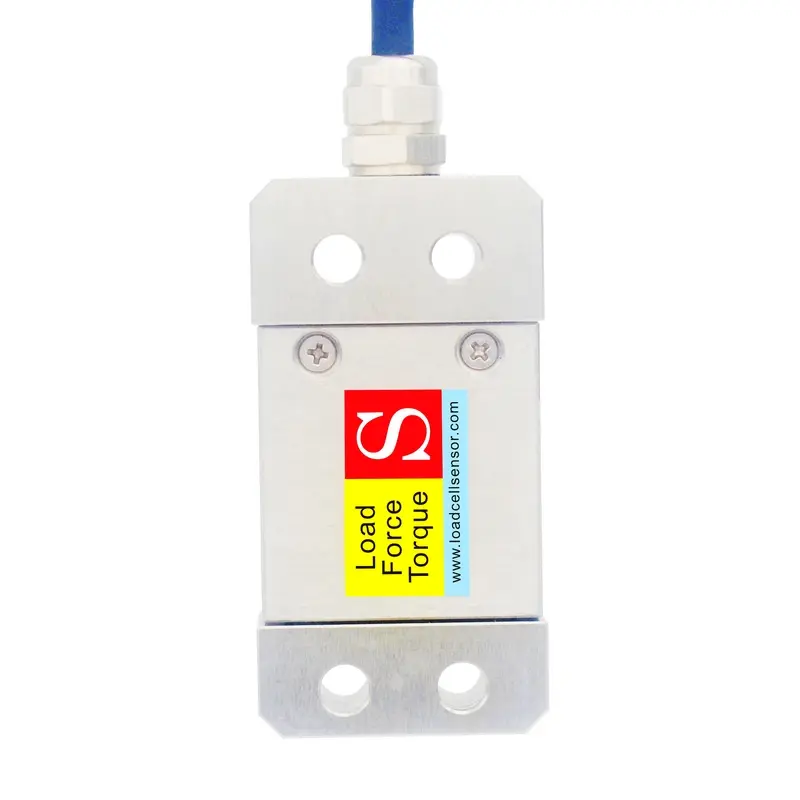

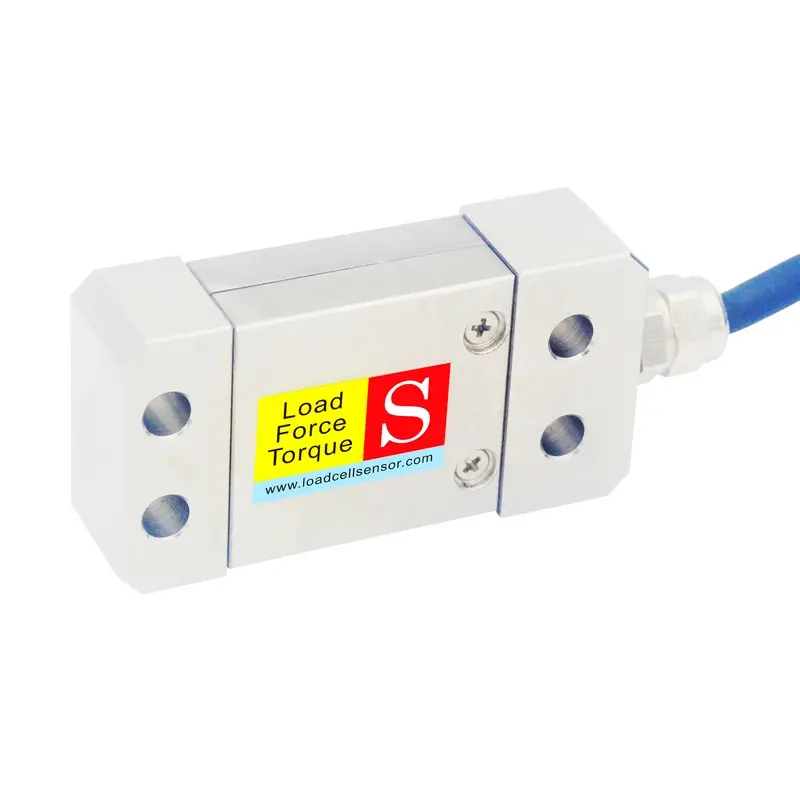

Surface-Mounted Strain Transducer Bolt-on Strain Sensor

The SLCF bolt-on strain sensor is a cost-effective measuring solution designed for industrial weighing and force-monitoring tasks where traditional load cell installation is impractical, time-consuming, or too expensive. Mounted directly onto existing support members such as vessel legs, frames, or structural beams, the sensor measures strain generated by loading and converts it into a usable signal for weight or force evaluation. This approach allows operators to monitor the contents of silos, hoppers, tanks, bins, and other process vessels without redesigning the support structure or fitting load cells beneath the equipment.

As a reliable surface strain transducer, the SLCF is especially valuable for retrofit projects and large storage systems where minimizing installation work and production interruption is essential. Its external mounting concept enables quick integration into existing equipment while preserving the original mechanical layout. The sensor can be used as a practical alternative to conventional weighing systems in applications where dependable load monitoring is required, but ultra-high laboratory-level precision is not the main priority. As a surface-mounted strain sensor, it detects stress variation in structural supports under load and helps users monitor filling level, load changes, or force distribution in real time. Once calibrated, the SLCF provides stable and repeatable data across a wide range of industrial operating conditions. In addition, its robust design makes it suitable for demanding environments where durability, simple installation, and reduced maintenance effort are important. Whether used as a bolt-on strain transducer for vessel weighing or for structural load verification, the SLCF offers a practical way to obtain reliable measurement data from existing steelwork and support assemblies.

Typical Applications

• Weighing silos, hoppers, tanks, and storage bins
• Load monitoring on vessel support legs and frames
• Retrofit weighing systems for existing industrial equipment
• Bulk material storage level and inventory monitoring
• Structural load measurement in process plants
• Force monitoring on heavy-duty support structures
• Industrial systems where load cells are difficult to install
