Cable Tension Measurement Sensor 0-5V 0-10V 4-20mA

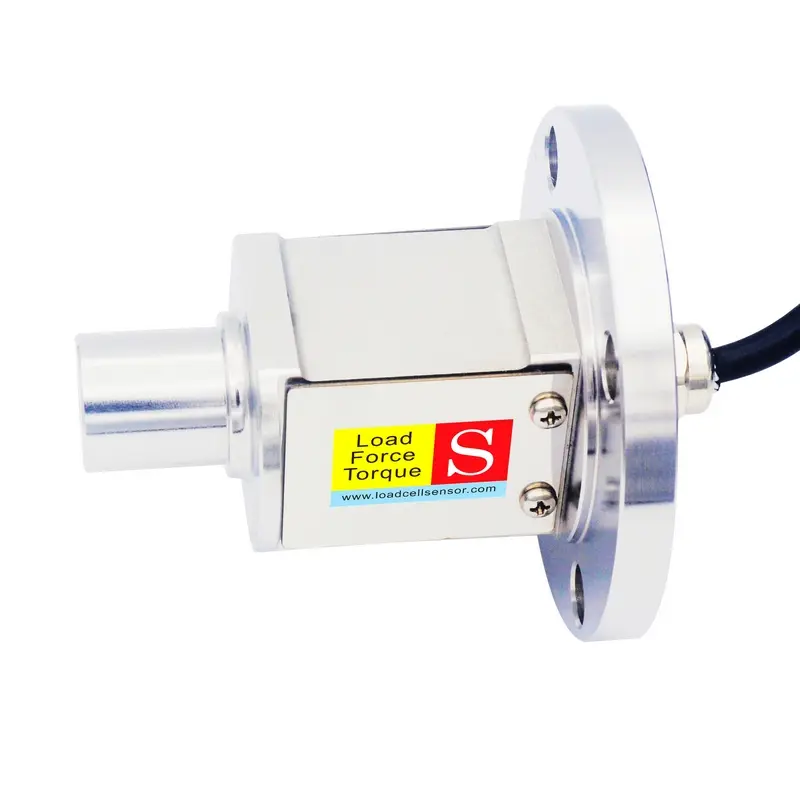

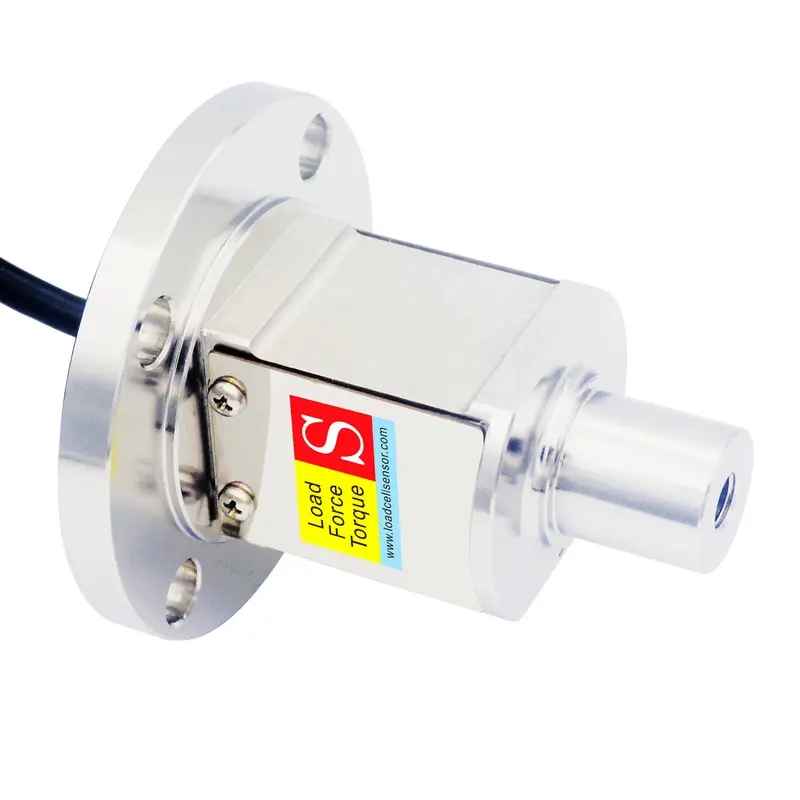

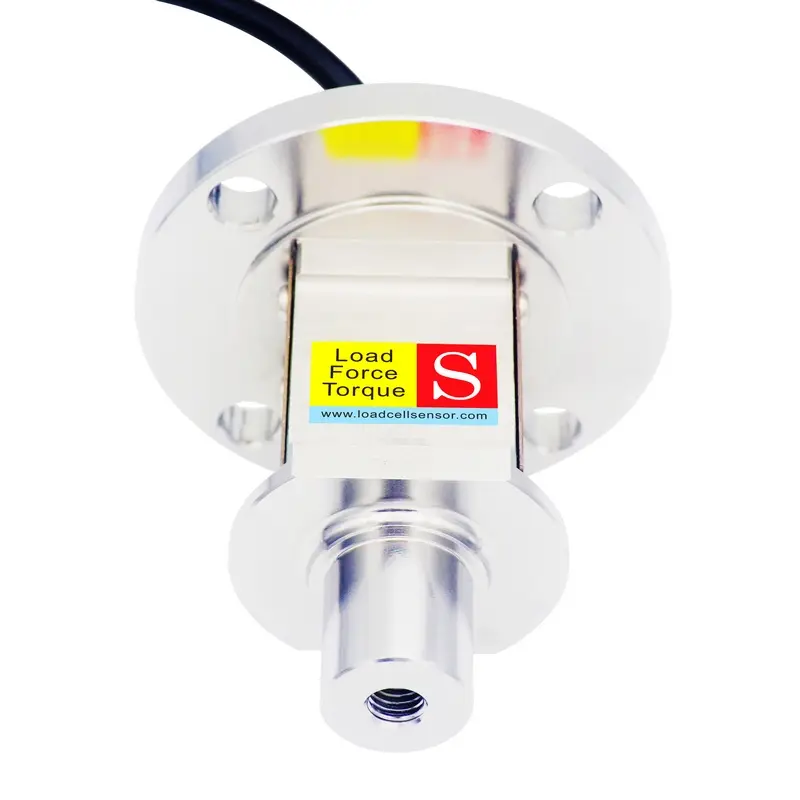

The STAH Wire Tension Sensor is a high-precision instrument designed to provide reliable tension measurement for wires, cables, ropes, and other flexible materials. Engineered from durable stainless steel, this sensor features a mounting flange at one end and a shaft at the other, enabling the installation of various guide wheels to accommodate different measurement media. Its rugged construction ensures long-lasting performance, making it ideal for demanding industrial environments where accuracy and consistency are critical.

As a versatile cable tension load cell, the STAH sensor is available in rated capacities of 100N, 200N, 300N, 500N, and 1000N. It delivers both raw mV/V output and amplified signals ranging from 0–5V, 0–10V, or 4–20mA, allowing seamless integration with industrial control and automation systems. The sensor's robust design guarantees precise readings under continuous operation, minimizing downtime and ensuring process reliability. Combined with advanced calibration techniques, it provides dependable tension monitoring across multiple production stages.

The STAH Wire Tension Sensor and associated rope tension control solutions are widely used in industrial applications that require precise tension management. Key use cases include:

• Cable extrusion line tension monitoring, ensuring consistent cable diameter and quality.
• Textile weaving machine tension control, maintaining uniform fabric tension for superior product quality.
• Ribbon and tape winding processes, preventing deformation or slack during high-speed operations.
• Sheet metal and foil tension measurement, optimizing material handling and reducing waste.
• Wire drawing process tension control, guaranteeing dimensional accuracy in high-precision wires.
• Automotive cable assembly tension management, ensuring reliable electrical connections and assembly integrity.

For customers with unique mechanical requirements or specialized measurement ranges, LCE TECH offers fully customized solutions. These solutions combine web tension sensors, wire tension measurement sensors, and cable tension load cells to enhance process control, improve product quality, and ensure safe, efficient production across diverse manufacturing lines. Whether integrated into existing systems or implemented in new installations, STAH tension sensors provide the reliability and precision that modern industries demand.

With a proven track record in enhancing operational efficiency, reducing material waste, and maintaining consistent product standards, the STAH Wire Tension Sensor series represents the ideal choice for industries seeking precise, dependable tension measurement solutions.
