M56 Female Threaded In-line Load Cell 200kN 300kN 500kN

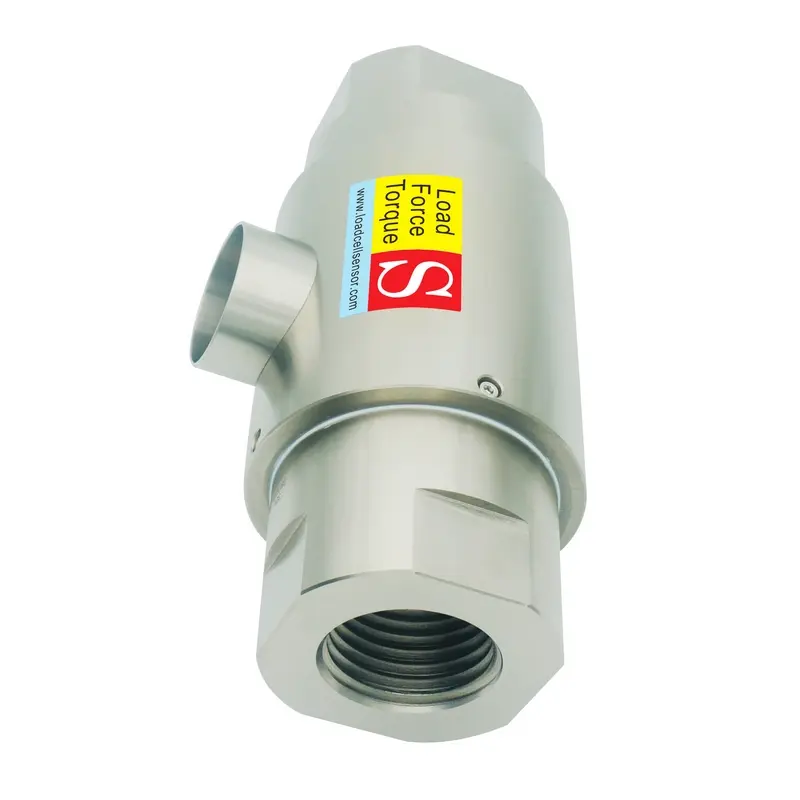

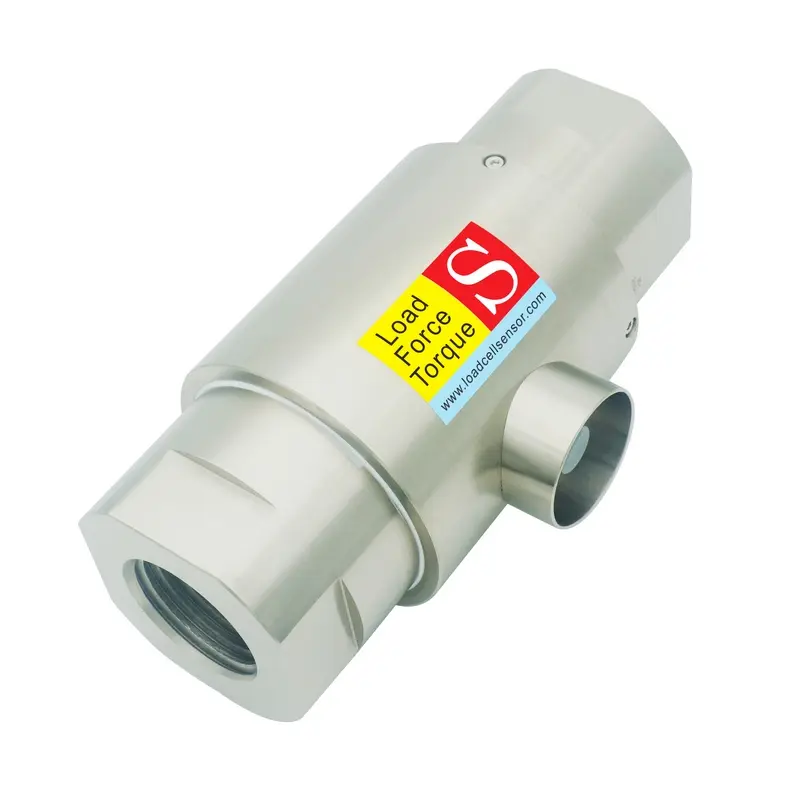

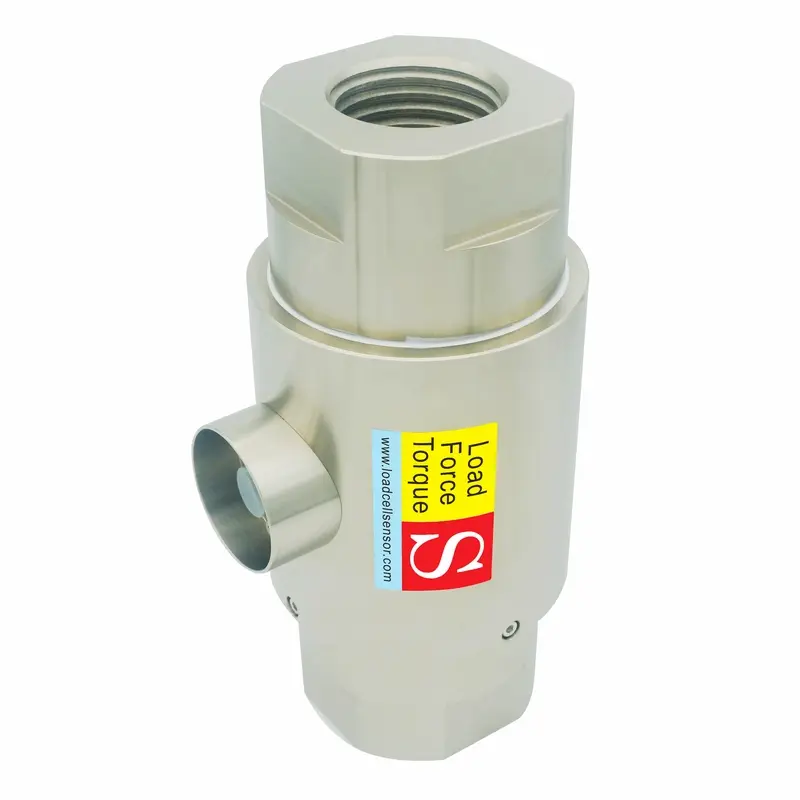

The LCR15 female threaded rod end load cell is a robust, high-capacity push pull force sensor engineered for precise inline force measurement in demanding industrial environments. Designed as an internal threaded inline load cell, the transducer features an M56 female thread on both ends, allowing fast and secure installation directly between threaded rods, hydraulic cylinders, actuators, or structural members. This compact inline configuration minimizes installation space while ensuring accurate force transmission, making the LCR15 ideal for both new system integration and retrofit projects.

Manufactured from either high-strength alloy steel or corrosion-resistant stainless steel, the LCR15 is built to perform reliably in harsh and heavy-duty operating conditions. Rated capacities are available in 200 kN, 300 kN, and 500 kN, providing flexibility for a wide range of industrial force measurement tasks. The sensor is designed to measure both tension and compression forces, enabling true push-pull monitoring within a single device. To guarantee performance and traceability, each unit is delivered with an in-house tension calibration certificate (Compression optional), ensuring verified accuracy and repeatable measurement results from the moment of installation.

The LCR15 is particularly suited for closed-loop force control and real-time monitoring in modern automation systems. Typical applications include pneumatic actuator force feedback, hydraulic cylinder thrust monitoring, and servo electric actuator force control, where precise force measurement is critical to system efficiency and safety. In manufacturing environments, the sensor is widely used for injection molding clamp force measurement, metal forming press force measurement, and automated assembly press force monitoring, helping manufacturers maintain product quality, improve repeatability, and prevent equipment overload.

Beyond factory automation, this female threaded rod end load cell is also well suited for structural and infrastructure monitoring. It can be installed inline with tension members to provide reliable bridge cable tension monitoring, structural testing, and heavy machinery evaluation. Its durable construction supports both static and dynamic load measurement, making it a dependable solution for long-term monitoring or high-cycle testing environments.

For projects requiring different thread sizes, capacities, environmental protection levels, or output signals, LCS TECH offers full customization services. Our engineering team works closely with customers to develop tailored force sensing solutions based on this proven rod-end architecture, ensuring optimal performance for specialized applications. The LCR15 delivers the strength, accuracy, and flexibility needed for modern high-force measurement systems.
