Flange mount load cell 0-1000kg for web tension measurement

The STCK shaft-through load cell is a compact and highly accurate force measurement device developed for demanding web handling and tension monitoring systems. Designed with advanced foil strain gauge technology and a full Wheatstone bridge circuit, this Through-shaft tension sensor delivers precise force feedback for continuous process monitoring. The sensor detects forces generated by moving materials and converts them into stable electrical output signals, enabling responsive web tension control in a wide range of industrial applications.

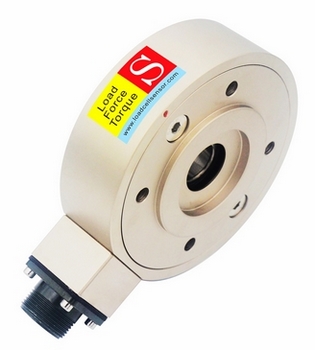

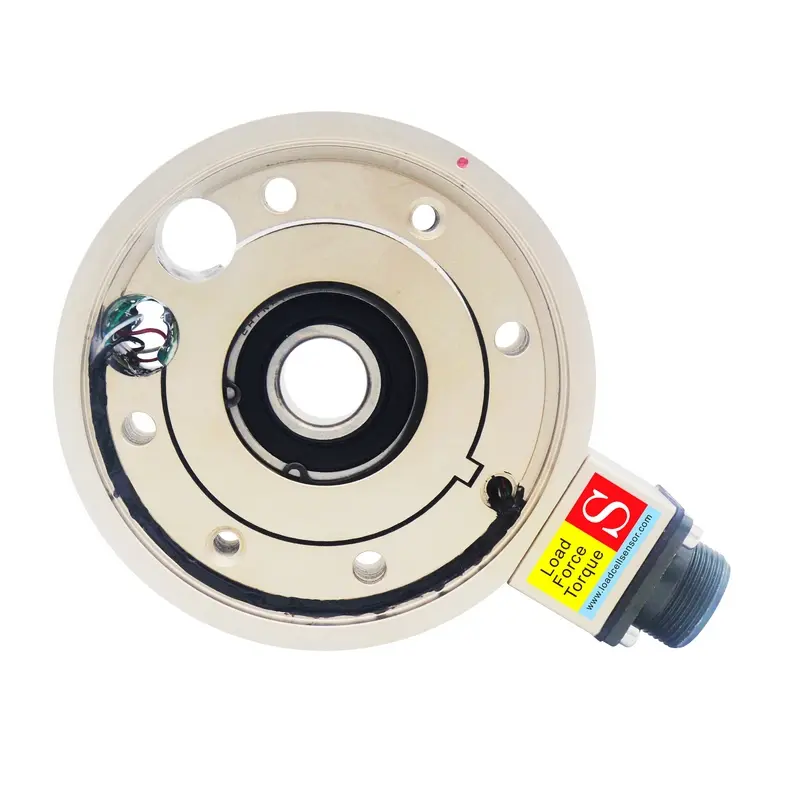

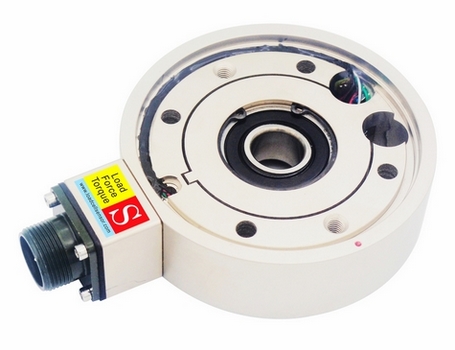

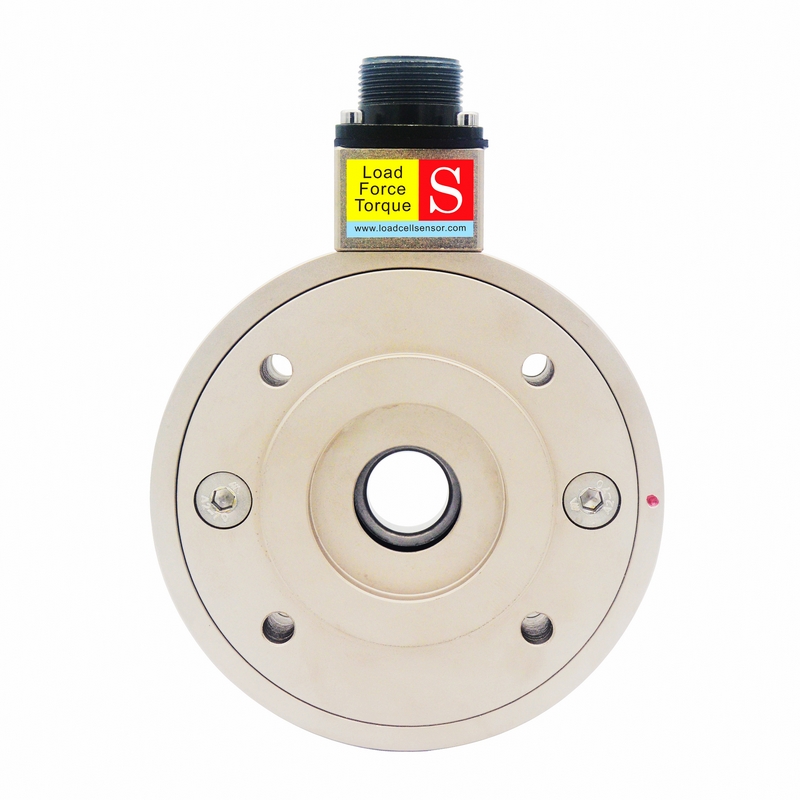

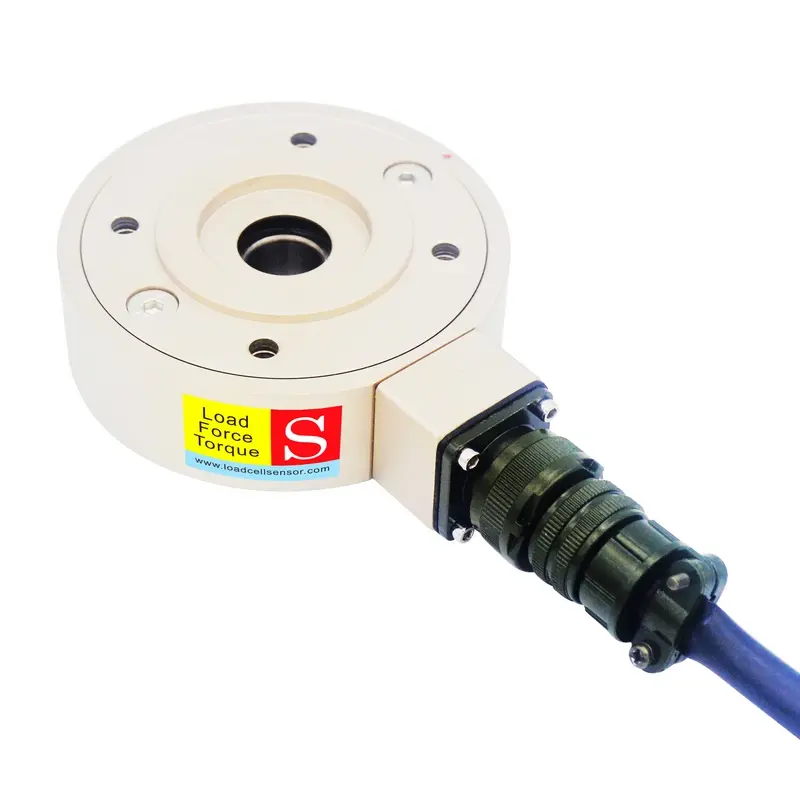

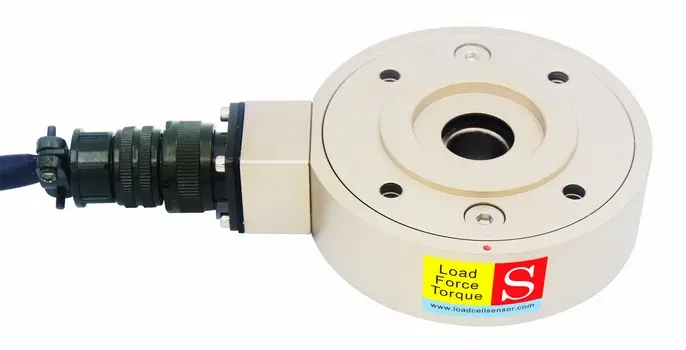

With rated capacities ranging from 15 kg to 1000 kg (150 N to 10 kN), the STCK series accommodates both light-duty and heavy-duty machinery. Its through-shaft construction allows direct integration into roller assemblies while occupying minimal installation space. Four mounting holes simplify mechanical installation, and each sensor is supplied with a bearing seat for convenient roller pin support. The rigid sensing structure minimizes mechanical deformation under load, ensuring excellent repeatability, long-term stability, and reliable measurement performance even in continuous production environments.

As a high-performance web tension sensor, the STCK series helps manufacturers maintain consistent material tension throughout production processes. Accurate tension feedback reduces material waste, minimizes web breaks, improves product uniformity, and increases overall equipment efficiency. The sensor is particularly suitable for applications where precise force monitoring is critical to product quality and process stability.

Typical applications include:

• Film and plastic converting lines
• Paper and tissue processing equipment
• Printing and label production machinery
• Foil, laminate, and flexible packaging systems
• Wire, cable, and fiber manufacturing lines
• Textile, nonwoven, and fabric processing equipment
• Battery electrode and electronic material production

The STCK flange mount load cell is engineered to support unwinding stations, rewinding systems, accumulator sections, dancer roller assemblies, and intermediate guide rollers. Its versatile design makes it an excellent choice wherever accurate web tension control is required.

In addition to standard models, LCS TECH provides customized Through-shaft tension sensor solutions tailored to specific installation requirements, load ranges, and machine configurations. Backed by proven sensing technology and extensive application experience, our custom designs deliver dependable performance for challenging industrial tension measurement tasks.
